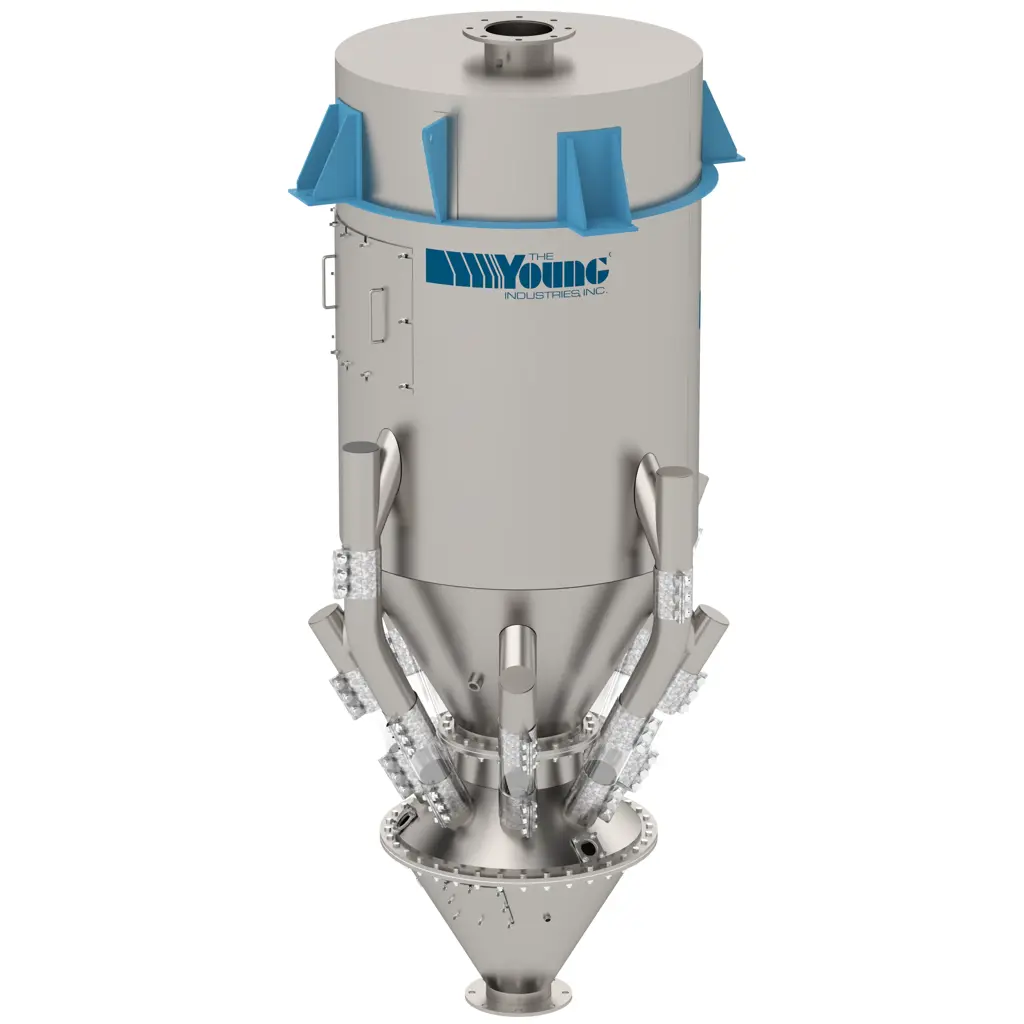

Multi-Port Gravity Blender
The Young Industries Multi-Port Gravity Blender is engineered to deliver homogenous blends, even with materials of varying sizes, shapes, and densities. Whether you're working with roasted coffee, colored plastic pellets, PVC regrind batches, or graphite, our Gravity Blender minimizes process deviations and ensures a consistent, high-quality output.
Features & Options
Our Gravity Blenders are designed to handle a wide range of materials, from free-flowing to sluggish. No matter your material or process, we have a Gravity Blender solution to meet your needs.

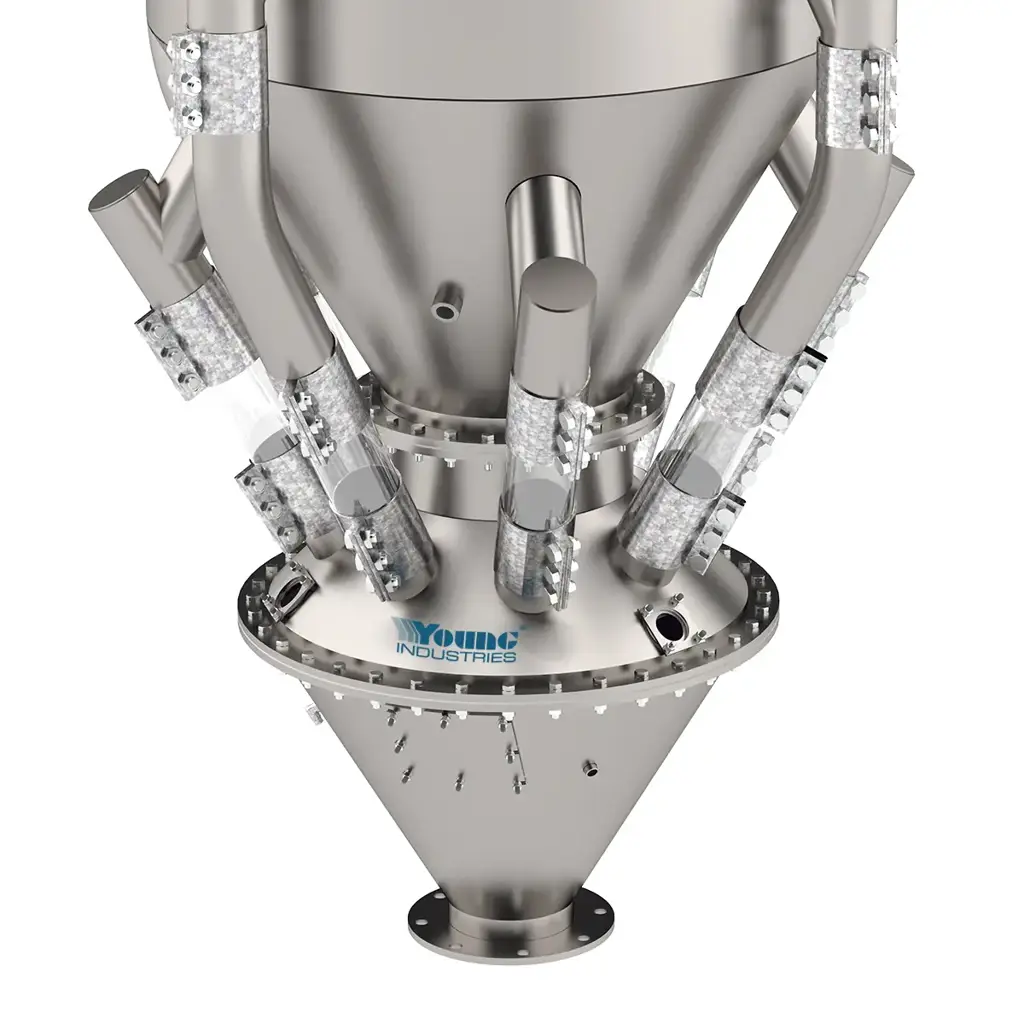

The Gravity Blender's strategic design utilizes exterior downcomer tubes to gently convey material to the blending chamber, promoting thorough mixing without the need for internal moving parts. This feature helps minimize maintenance requirements and ensure long-term reliability.
Whatever your application requirements, we can tailor your Gravity Blender to fit seamlessly into your existing infrastructure.
- Designs for handling both free flowing and non-free flowing materials
- Sizes from 5 cu. ft. working volume to 7500 cu. ft. working volume
- Blending with no moving parts
- Construction of carbon steel or 300 series stainless steel
- Gravity-driven MP-I for free-flowing materials
- MP-II with inverted vibrating cone for sluggish materials
- Support legs
- External ladder and safety cage
- Conversion kit for existing storage facilities
Specifications

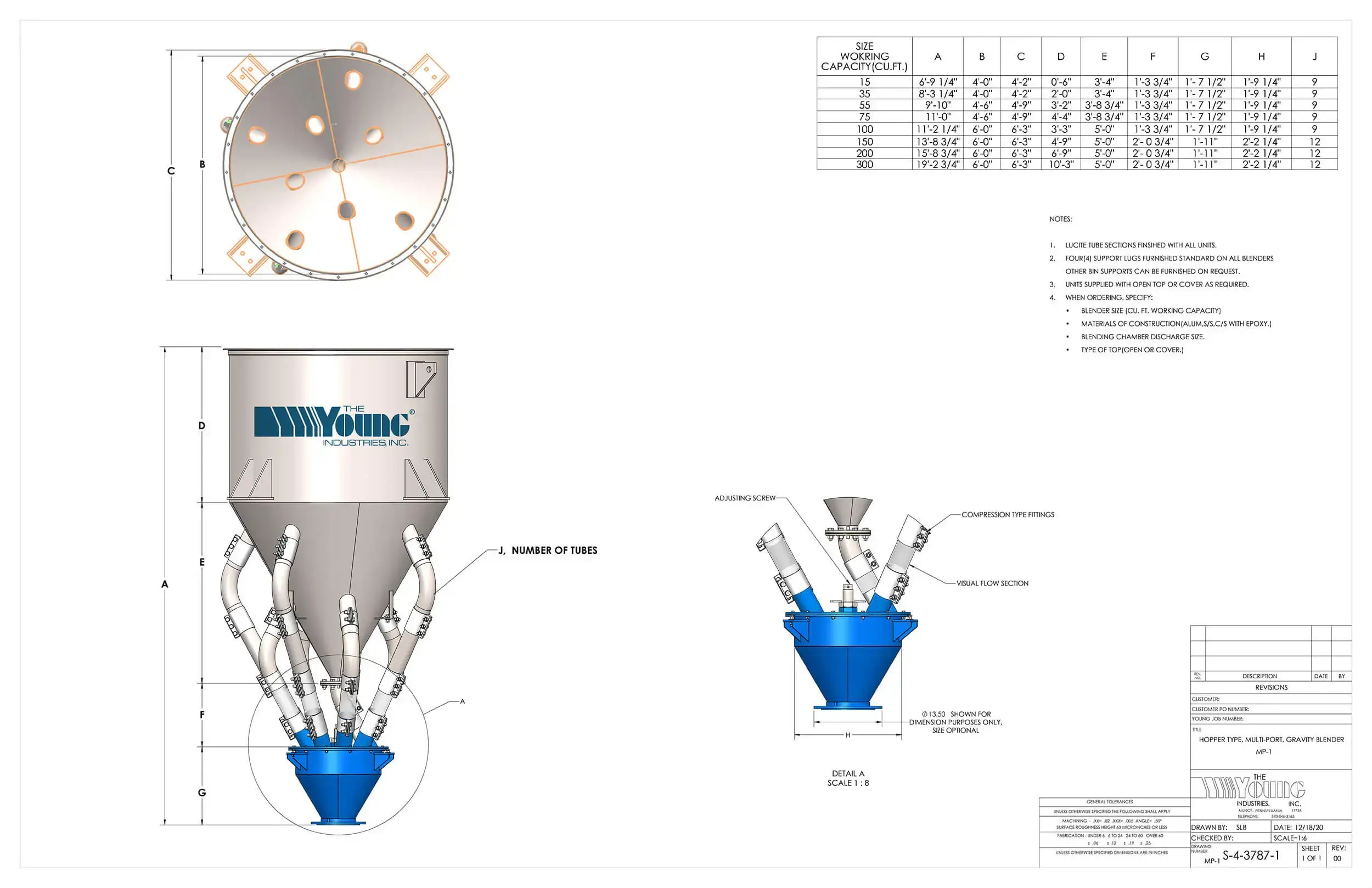

MP-1 Hopper Style
| Working Capacity (Cubic Feet) | # of Tubes | Overall Height | Hopper Diameter | Material of Construction |
|---|---|---|---|---|
| 15 | 9 | 6'-9.25" | 4' | Stainless Steel Carbon Steel |
| 35 | 8'-3.25" | |||
| 55 | 9'-10" | 4'-6" | ||
| 75 | 11'-0" | |||
| 100 | 11'-2.25" | 6' | ||
| 150 | 12 | 13'-8.75" | ||
| 200 | 15'-8.75" | |||
| 300 | 19'-2.75" |
MP-1 Bin Style
| Working Capacity (Cubic Feet) | # of Tubes | Overall Height | Hopper Diameter | Material of Construction |
|---|---|---|---|---|
| 100 | 9 | 15'-10" | 4' | Stainless Steel Carbon Steel |
| 200 | 12 | 17'-10" | 6' | |
| 300 | 19'-10" | |||
| 400 | 23'-10" | |||
| 500 | 21'-11" | 8' | ||
| 750 | 26'-11" | |||
| 1000 | 26'-4" | 11' | ||
| 1500 | 30'-4" | |||
| 2000 | 34'-2" | |||
| 2500 | 13 | 41'-2" | ||
| 3000 | 16 | 47'-3" | ||
| 3500 | 53'-3" | |||
| 4000 | 17 | 57'-4" | ||
| 4500 | 63'-4" | |||
| 5000 | 67'-4" | |||
| 5500 | 18 | 74'-4" | ||
| 6000 | 67'-3" | |||
| 6500 | 20 | 73'-3" | 12' | |
| 7000 | 79'-3" | |||
| 7500 | 65'-0" | 14' |
Resources
Customization
Our team of experts will work with you to tailor a Gravity Blender solution that meets your exact requirements and delivers optimal performance for your specific materials and process.
