Collectors & Receivers

Young Industries Collectors & Receivers are engineered for reliable material collection and dust control in industrial environments. Whether managing powders, granules, or fine particles, our collectors and receivers are built to exceed your expectations in applications ranging from food and pharmaceuticals to chemicals and plastics.

Features & Options

Our Collectors & Receivers are designed with adaptability, durability, and performance in mind. From high-capacity pneumatic conveying systems to compact dust collection, we offer a wide range of options to ensure seamless integration into your process.

Each unit is built with precision and care, delivering exceptional efficiency in capturing and separating particles from air streams, protecting your products and workers.

Features

Continuous reverse jet-pulsing for self-cleaning operation
Heavy-duty welded construction for durability
OSHA-compliant ladders and platforms for safe access
Pressure switches, flow meters, and level indicators for real-time monitoring
Customizable cone angles and process connections

Options

Designed for positive pressure or vacuum environments
Hazardous material compliance and explosion-proof configurations
Special paint finishes for carbon steel units
Stainless steel or carbon steel construction
Custom shapes and sizes to meet unique specifications
Integration with air or gas piping systems
Additional features such as support lugs, lifting lugs, and side access designs

Specifications

VM Series (Square)

Model	Cloth Area (Sq. Ft.)	Overall Height	Overall Width	Filter Length	Compressed Air Required @ 90 PSIG (SCFM)
VM24-9	23	6'-3"	2'-6"	2'-0"	2
VM36-9	35	7'-3"		3'-0"	2
VM48-9	47	8'-3"		4'-0"	2
VM36-16	62	7'-10"	3'-0"	3'-0"	3
VM48-16	83	8'-10"		4'-0"	3
VM60-16	104	9'-10"		5'-0"	3
VM72-16	125	10'-10"		6'-0"	3
VM48-25	130	9'-9"	4'-0"	4'-0"	4
VM60-25	163	10'-9"		5'-0"	4
VM72-25	195	11'-9"		6'-0"	4
VM96-25	260	14'-0"		7'-0"	4
VM60-36	234	11'-6 1/2"	4'-6"	5'-0"	5
VM72-36	281	12'-6 1/2"		6'-0"	5
VM96-36	374	14'-9 1/2"		8'-0"	5
VM120-36	468	16'-9 1/2"		10'-0"	5
VM72-49	382	13'-1 1/2"	5'-0"	6'-0"	15
VM96-49	510	15'-4 1/2"		8'-0"	15
VM120-49	637	17'-4 1/2"		10'-0"	15
VM96-64	666	15'-9 1/2"	5'-6"	8'-0"	17
VM120-64	832	17'-9 1/2"		10'-0"	17
VM144-64	998	19'-9 1/2"		12'-0"	17
VM96-81	842	16'-2 1/2"	6'-0"	8'-0"	19
VM120-81	1053	18'-2 1/2"		10'-0"	19
VM144-81	1264	20'-2 1/2"		12'-0"	19

VC Series (Round)

Model	Hsg. Dia. (in.)	Cloth Area (Sq. Ft.)	Overall Height	Compressed Air Required @ 90 PSIG (SCFM)	Design Pressure (Inches of Water)
VC24-9	32	23	72	2	125
VC36-9		35	84
VC48-9		47	96
VC60-9		56	108
VC24-12	34	31	75	2	125
VC36-12		47	87
VC48-12		52	99
VC60-12		78	111
VC48-16	40	83	106	4.4	125
VC60-16		104	118
VC72-16		125	130
VC96-16		166	154
VC48-24	48	125	115	4.4	125
VC60-24		156	127
VC72-24		187	139
VC96-24		250	163
VC60-32	54	208	133	6.6	125
VC72-32		250	155
VC96-32		333	179
VC120-32		416	203
VC60-38	60	247	133	6.6	80
VC72-38		296	155
VC96-38		395	177
VC120-38		494	201
VC60-52	68	338	150	17.6	80
VC72-52		406	162
VC96-52		541	186
VC120-52		672	210
VC72-60	74	468	167	17.6	80
VC96-60		624	191
VC120-60		780	215
VC72-76	82	593	172	22	80
VC96-76		790	198
VC120-76		988	222
VC72-88	88	686	179	22	80
VC96-88		915	203
VC120-88		1144	227
VC96-112	96	1165	210	44	60
VC120-112		1456	234
VC144-112		1747	258
VC96-148	108	1539	221	52	60
VC120-148		1924	245
VC144-148		2309	269

HM Series

Model	Cloth Area (Sq. Ft.)	Overall Height (in.)	Overall Width (in.)	Overall Depth (in.)	Compressed Air Required @ 90 PSIG (SCFM)
HM24-9	23	68	24	37	2
HM36-9	35	79		49
HM48-9	47	89		61
HM24-16	42	76	30	39	4.4
HM36-16	62	84		51
HM48-16	83	94		63
HM24-25	65	97	42	39	5.5
HM36-25	98	97		51
HM48-25	130	105		63
HM60-25	163	115		75
HM72-25	195	125		87
HM48-36	187	111	48	67.5	6.6
HM60-36	234	121		79.5
HM72-36	281	131		91.5
HM48-49	255	117	54	69.5	15.4
HM60-49	319	125		81.5
HM72-49	382	136		93.5
HM48-64	333	129	60	69.5	17.6
HM60-64	416	131		81.5
HM72-64	499	142		93.5
HM48-81	421	140	66	69.5	19.8
HM60-81	527	140		81.5
HM72-81	632	148		93.5

Resources

Drawing - HM Horizontal

Drawing - VC

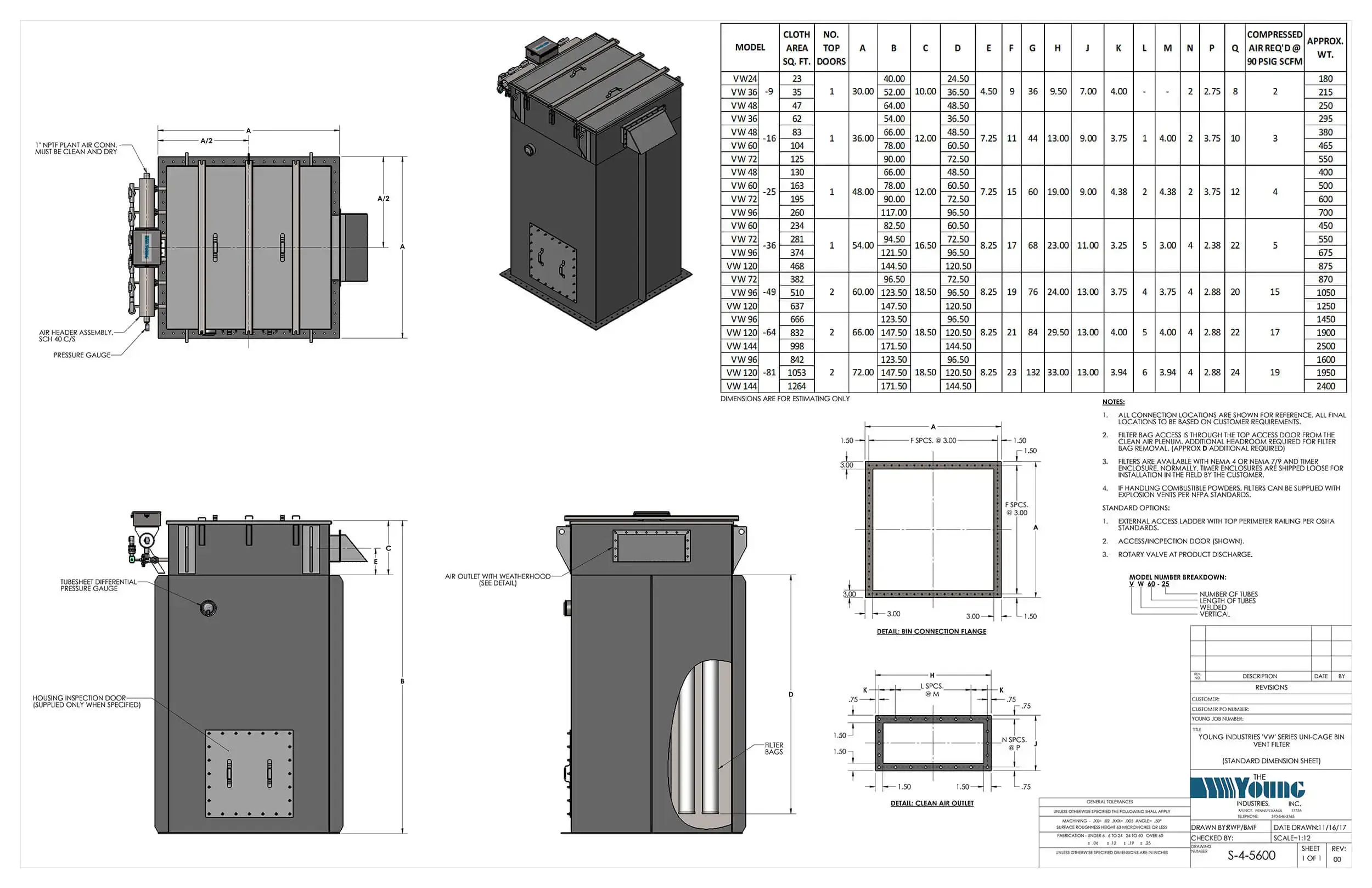

Drawing - VM Vertical

IOM

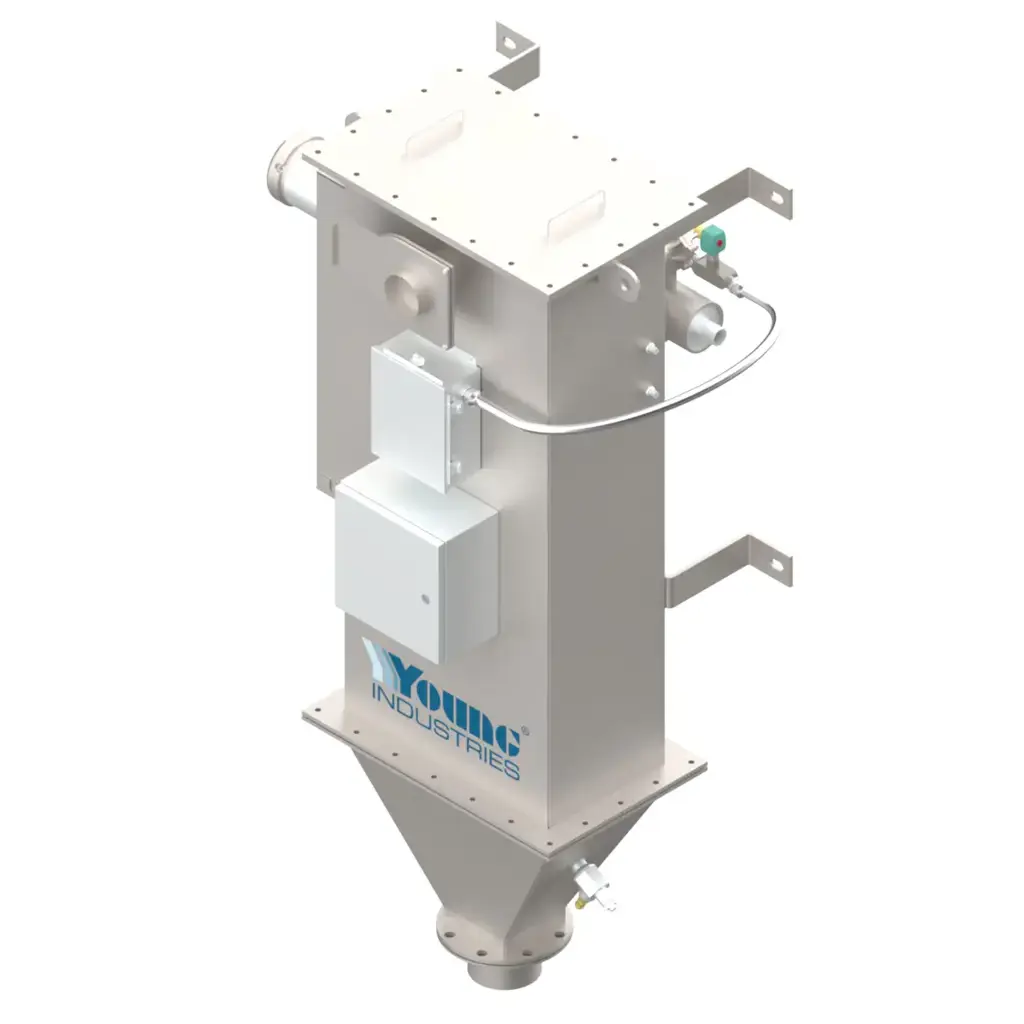

Vertical Square Units (VM)

The VM Units are engineered for versatility and durability, offering exceptional filtration performance across a range of applications. With a cloth area ranging from 23 to 1,264 square feet, VM Units are ideal for facilities handling medium to large volumes of material. Their vertical square design ensures an efficient footprint without compromising on capacity.

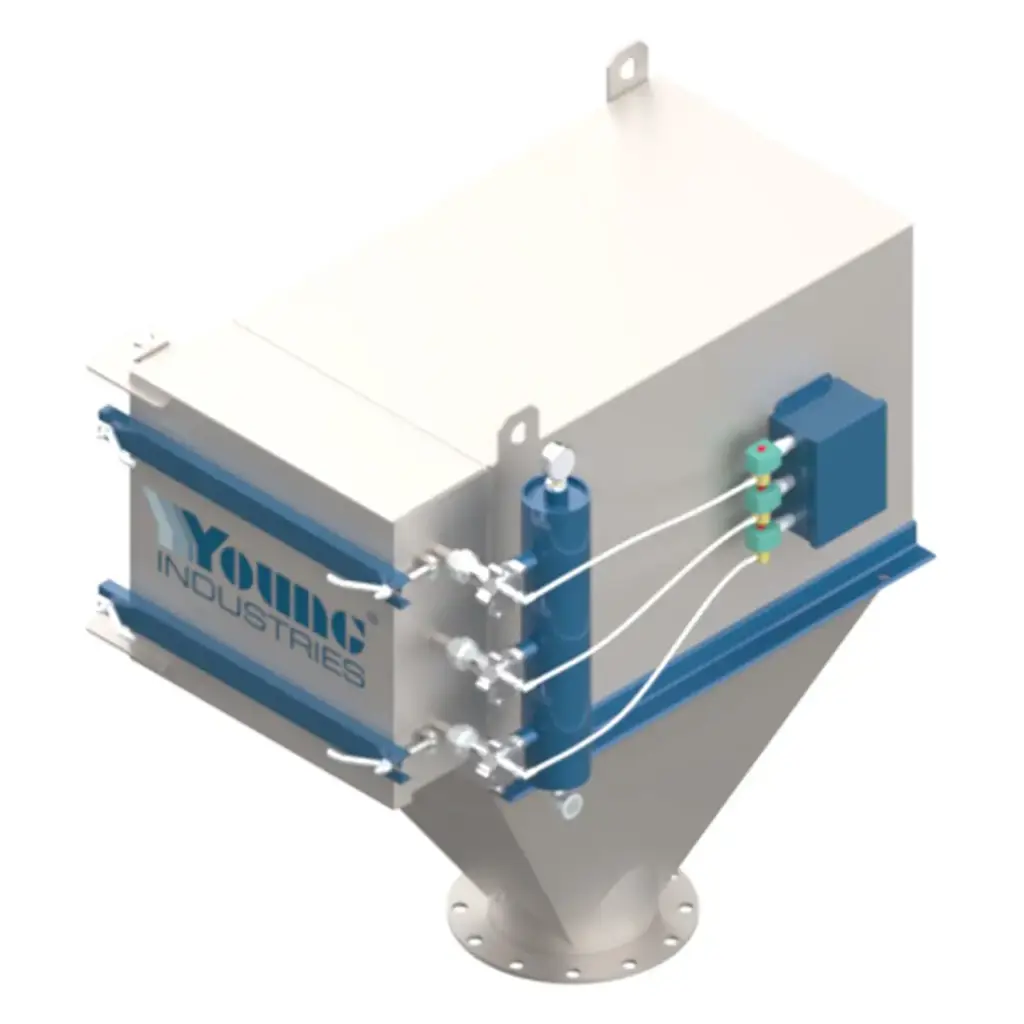

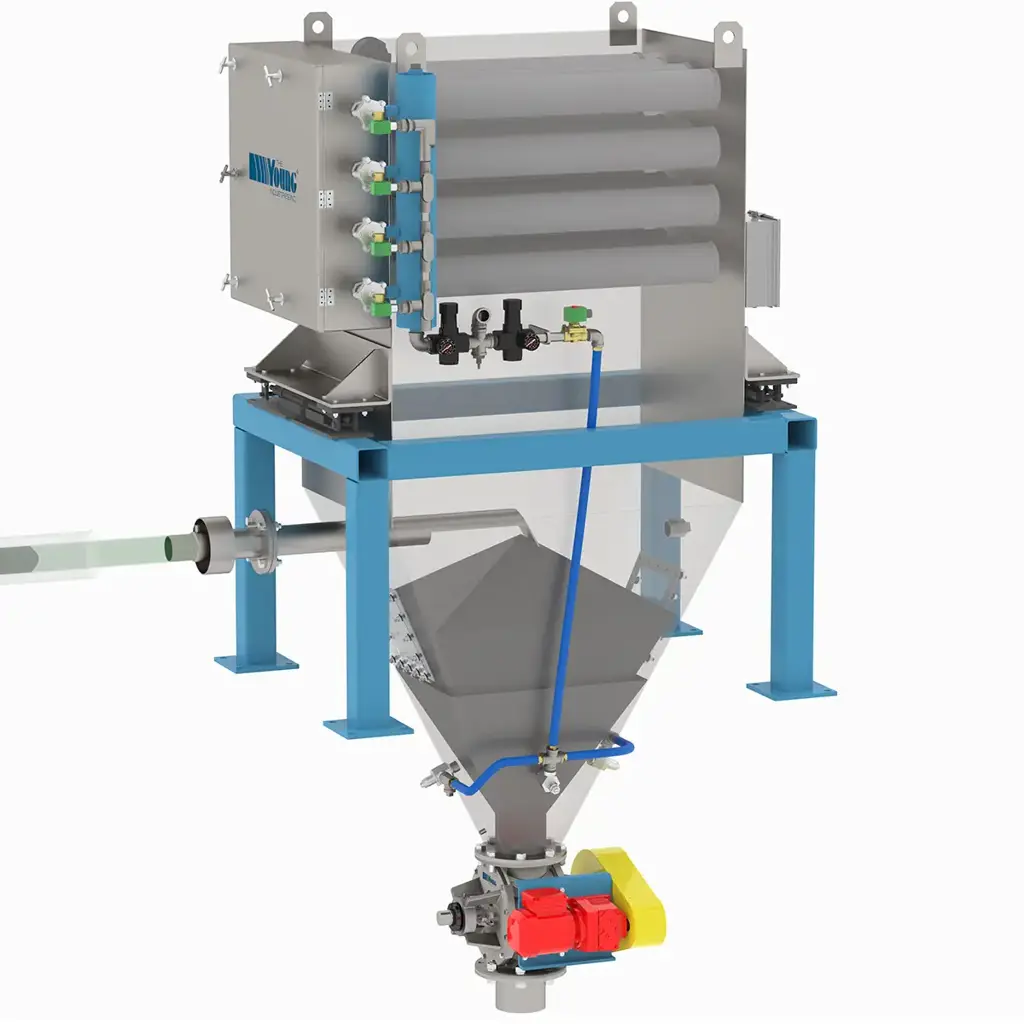

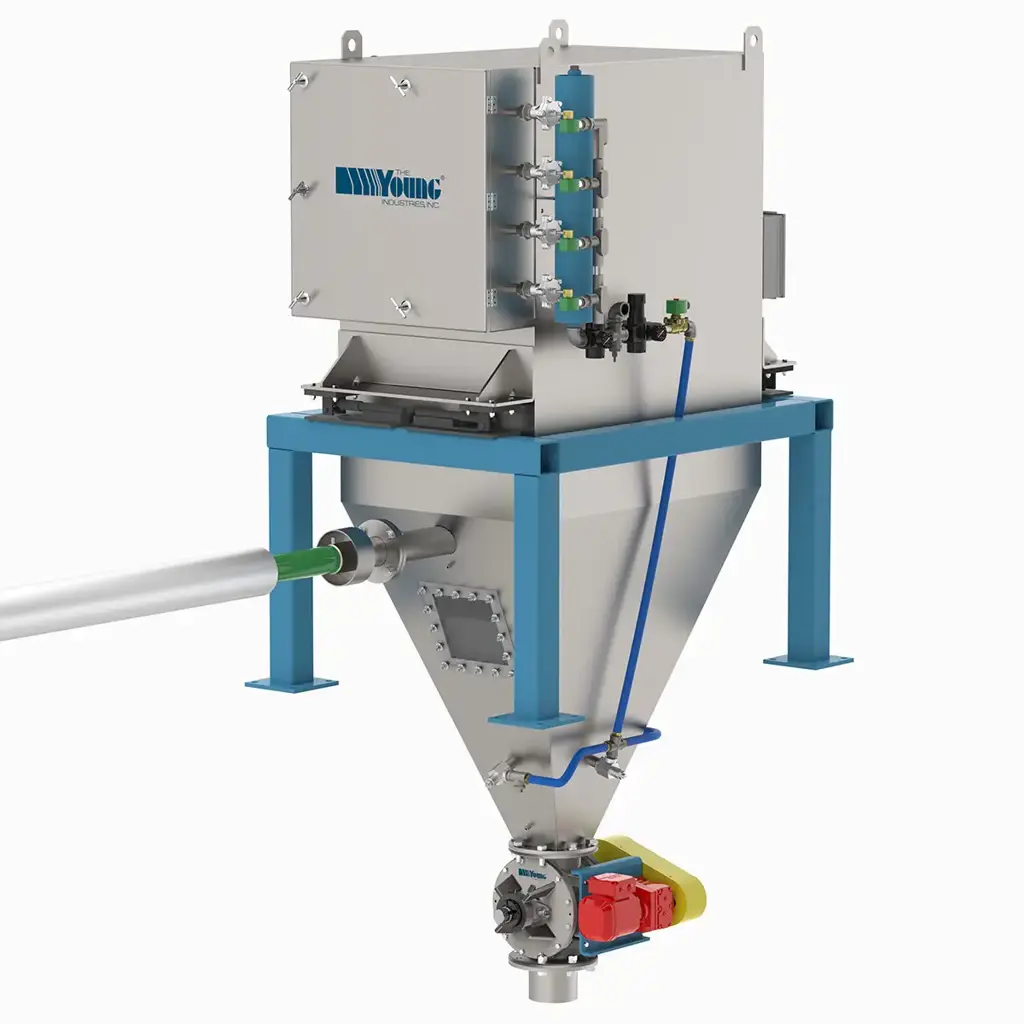

Horizontal Units (HM)

Our HM Units feature a compact design and a cloth area of up to 632 square feet, perfect for facilities with low headroom. Their side-bag removal system ensures quick and easy maintenance without sacrificing performance.

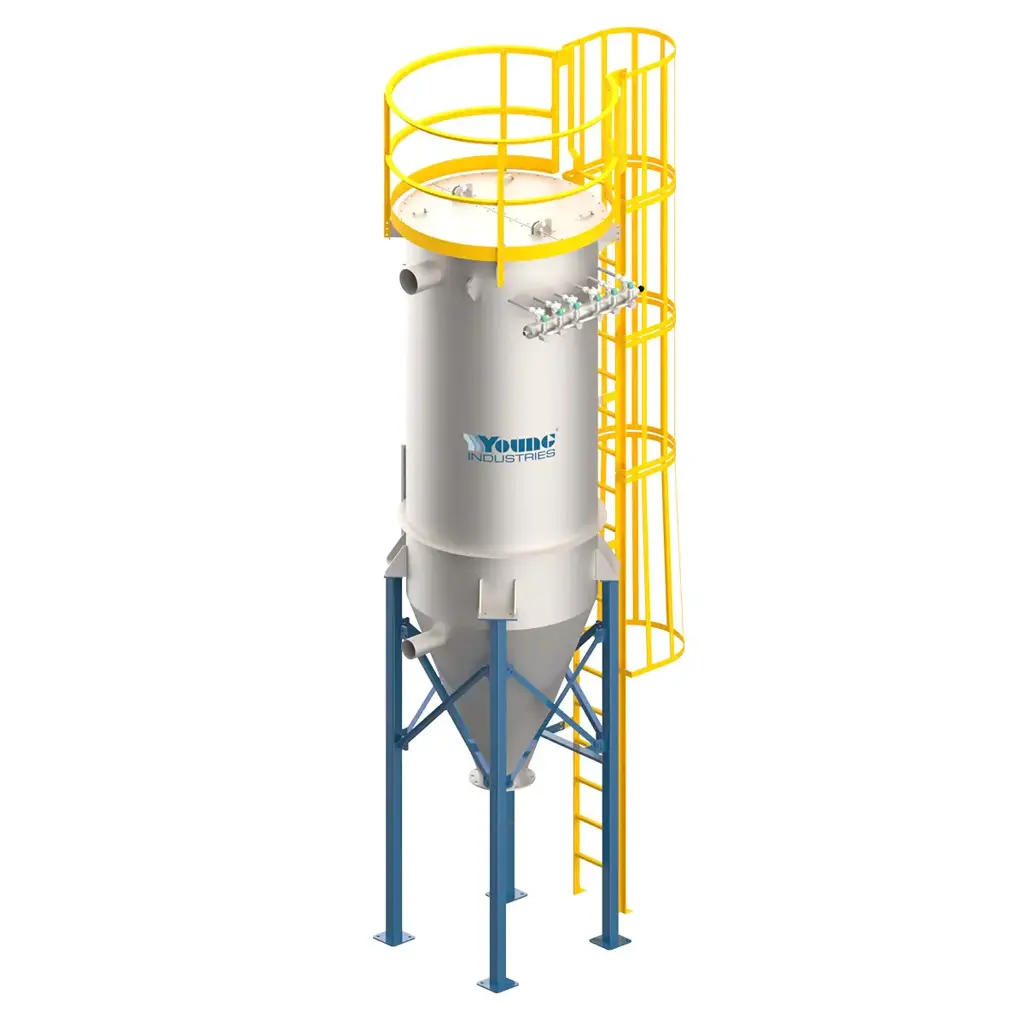

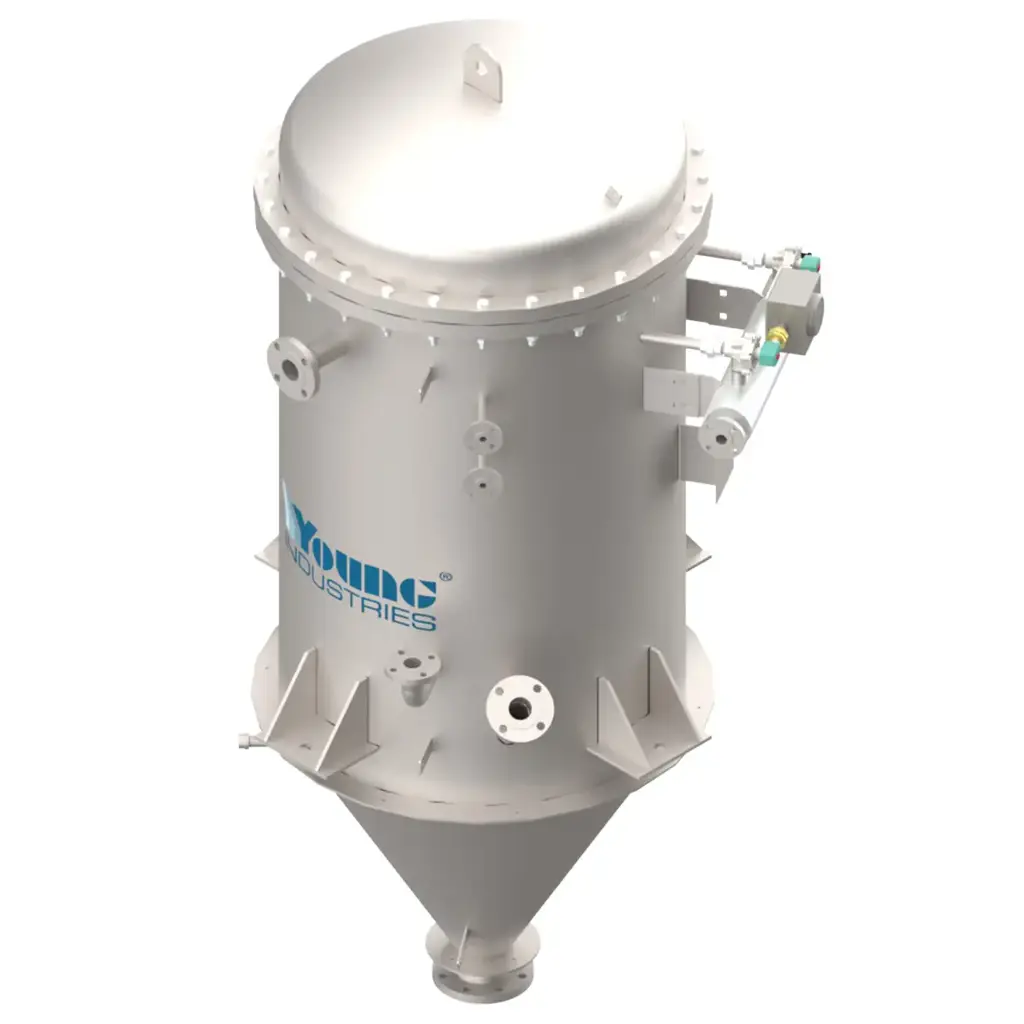

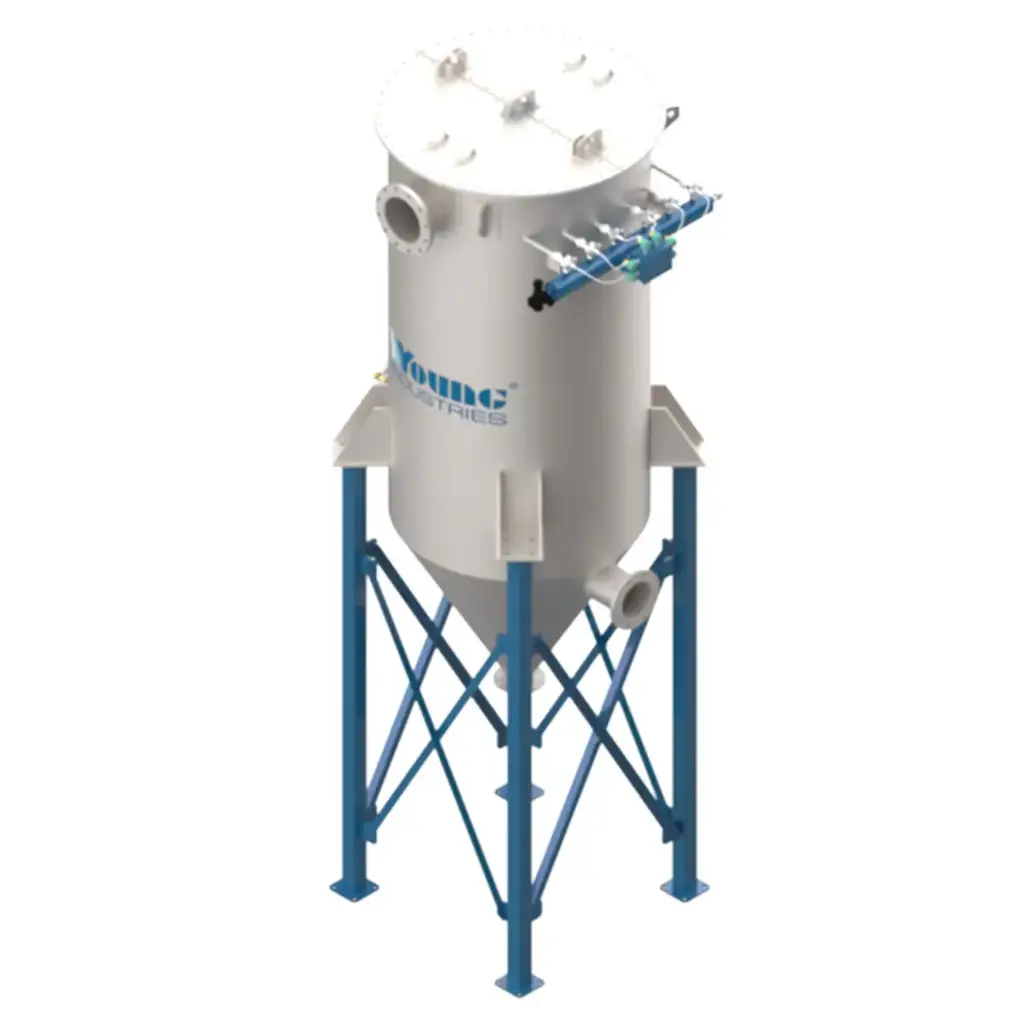

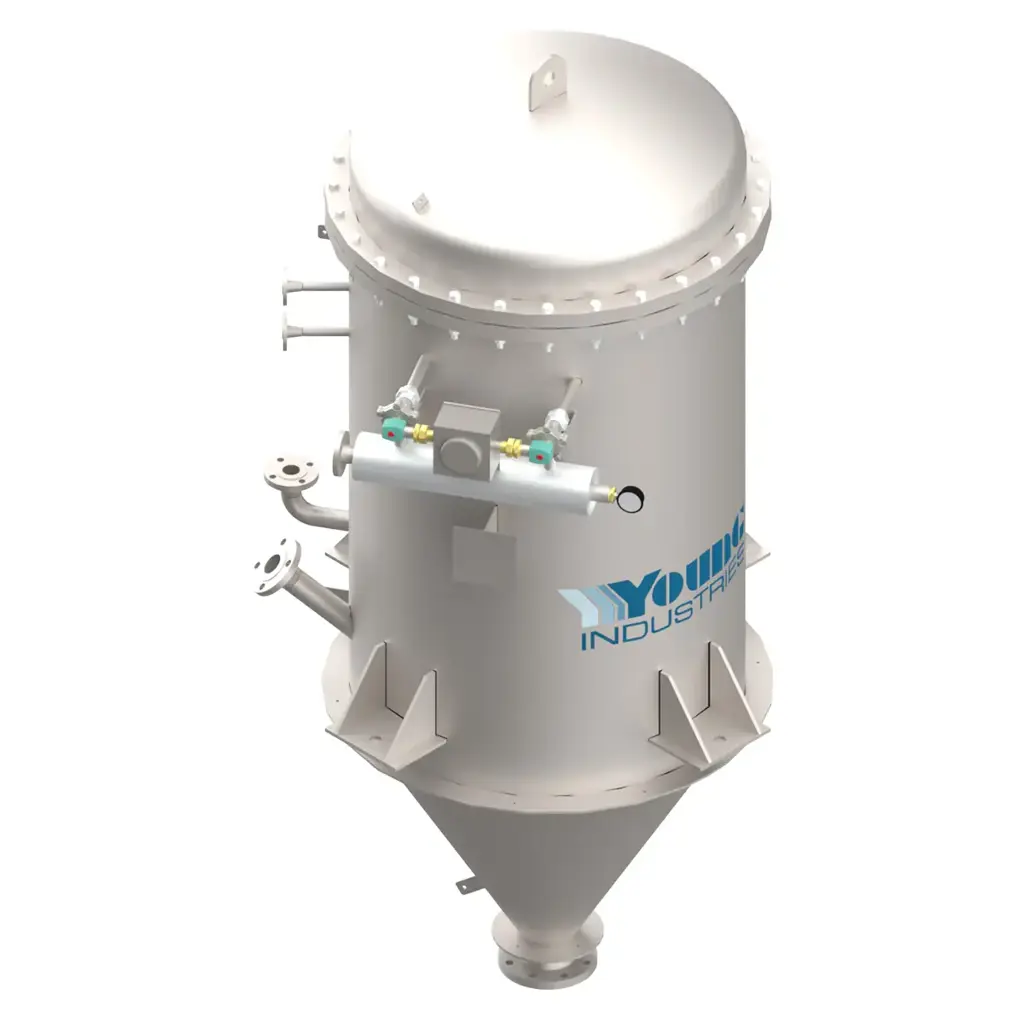

Vertical Cylindrical (VC) Units

Designed for high-capacity operations, our VC Units offer a cloth area of up to 2,309 square feet and can operate under vacuum or positive pressure. They’re ideal for demanding applications requiring robust performance and exceptional filtration efficiency.

Need a collector or receiver that fits your process perfectly? We specialize in customization. From unique materials of construction to tailored designs, we’ll collaborate with you to create a solution that meets your exact requirements. Let’s build the perfect fit for your needs.
