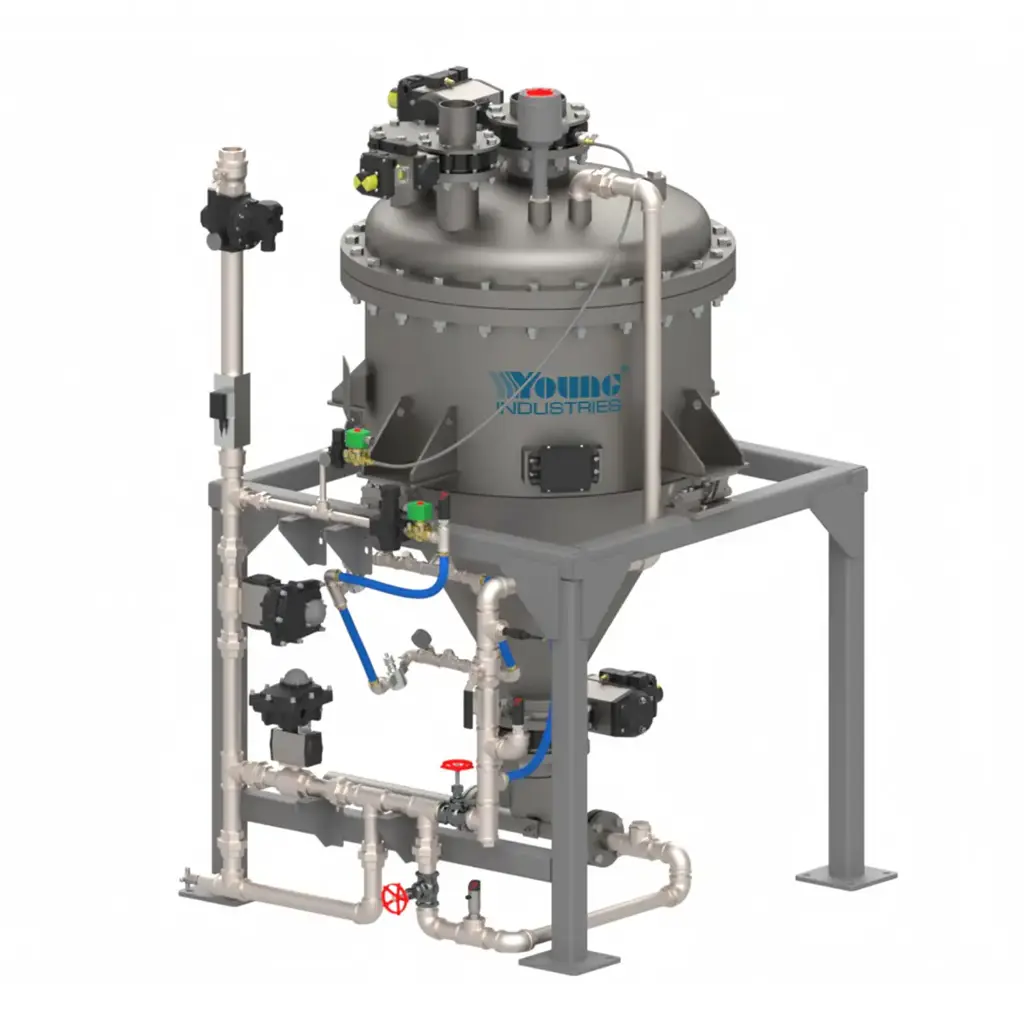

Multi-Phase Dense Phase Transporter
Young Industries' Multi-Phase Dense Phase Transporter is a versatile, high-capacity solution for efficiently conveying powders and bulk materials across various industries. Engineered for reliability and performance, our Transporter tackles even the most challenging conveying applications.
Features & Options
Our Multi-Phase Dense Phase Transporter is designed to deliver optimal conveying efficiency while minimizing material degradation and system wear. We offer a range of customization options to tailor the Transporter to your specific material properties, throughput requirements, and operating conditions.
The system utilizes plant compressed air or gas and operates at 20-40 PSIG, allowing for precise control of material density during conveying. Adjustments to orifice nozzles, discharge elbow nozzle position, and air flow valves enable you to achieve the desired dense phase or pulse phase conveying mode.
Features
- System Type: Dense Phase Transporter
- Material of Construction: Carbon Steel, 304 Stainless Steel, or Other Alloys
- CFM Required: 100-1000 CFM
- Bulk Density: Up to 100 lb/cu. ft.*
- Capacity: Up to 150,000 lbs/hr
- Conveying Distance: Up to 1000 ft*
- Design Pressure: 150 PSIG
- Design Temperature: -20 to 120° F
- ASME Stamp: U
- Instrumentation Voltage: 24 VDC / 120VAC
- Instrumentation Rating: NEMA 4/7/9
Options
- Flanged removable housing bolted heads or hinged housing heads with swing bolts
- TransFlow Fluidizing media lining in key areas of the Product Pump housing
- Young Industries' patented M/P Valve for precise air volume control
- PLC controller with or without electrical control panel
- Ethernet connection for PLC controller
- Flow meters, pressure switches, and transmitters
- Bin vent filters, Filter Receivers, or cyclone separators
- Receiving bins
- Convey line pipe, elbows, and couplings
- In-line check valves for vertical placement
- Convey line diverter valves
- Special paint colors
- Compressors for supplying motive air
Specifications
| System Type | Dense Phase Transporter |
|---|---|
| Material of Construction | Carbon Steel / 304 Stainless Steel / Other Alloys |
| CFM Required | 100-1,000 CFM |
| Bulk Density | Up to 100 lb / cu. ft.* |
| Capacity | Up to 150,000 lbs / hr |
| Conveying Distance | Up to 1,000 ft. |
| Design Pressure | 150 PSIG |
| Design Temperature | -20 to 120°F |
| ASME Stamp | U |
| Instrumentation Voltage | 24 VDC / 120 VAC |
| Instrumentation Rating | NEMA 4/7/9 |
*Consult Young Industries Applications for values exceeding standard
Resources
Customization
Our team of experts will collaborate with you to design a custom Multi-Phase Dense Phase Transporter that meets your specific requirements, ensuring optimal performance and efficiency for your operation.
