DEMO: Direct From Bag (DFB) Unloader
Portable

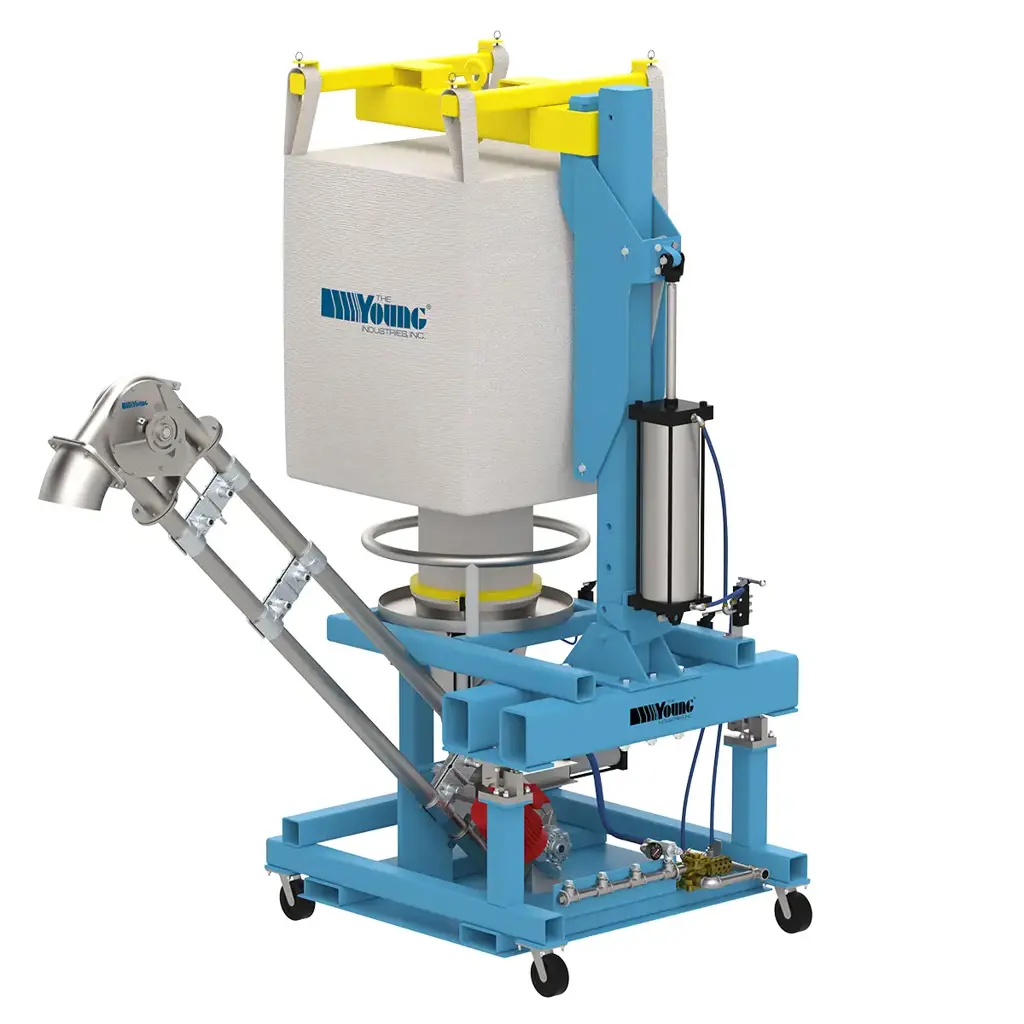

The Young Industries Low Headroom Direct From Bag "DFB" Unloader is the perfect solution when space is tight. It lets you unload bulk bags in areas with as little as 10 feet of headroom.

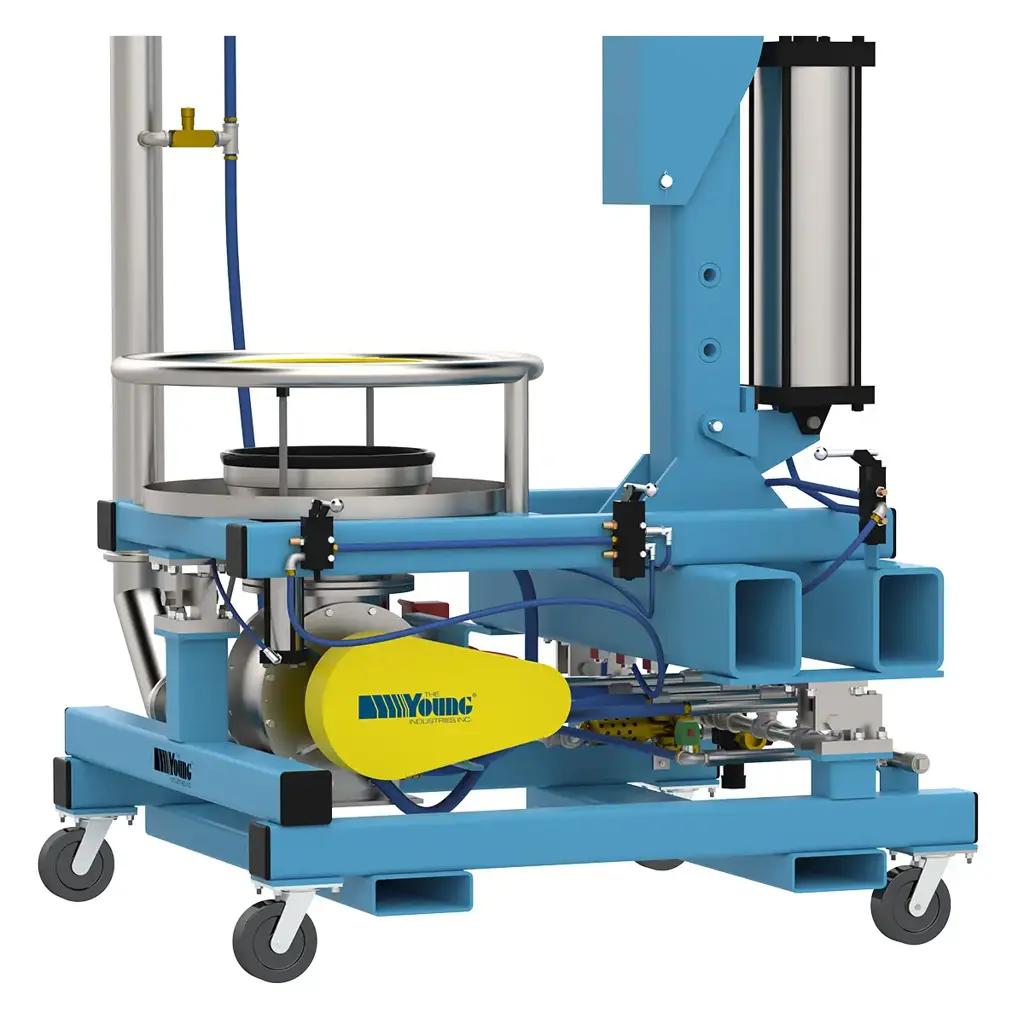

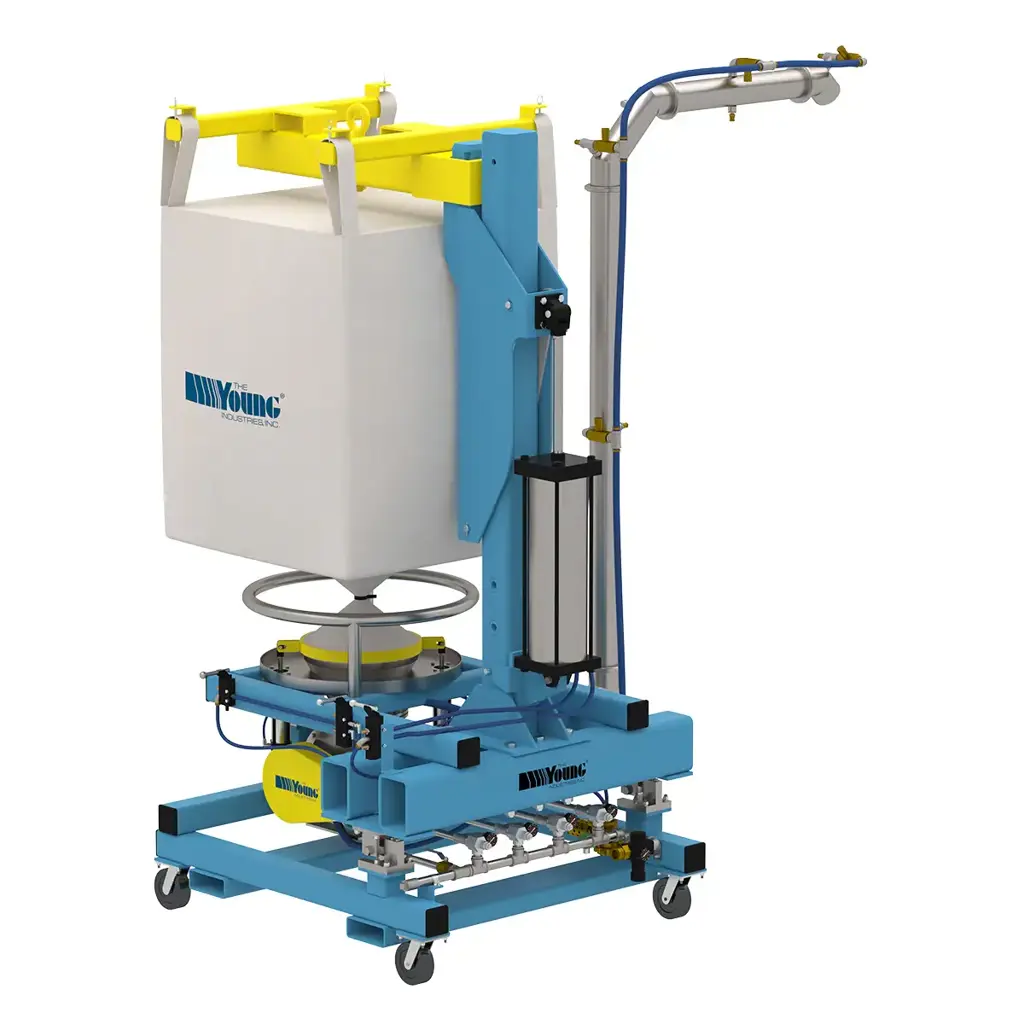

Here's how it works: A forklift takes the bag lifting bracket to the bulk bag, attaches it, and brings the bag to the DFB Unloader. The bag is placed on the mast, which uses a pneumatic cylinder to raise and lower it during unloading. A special clamping system keeps everything dust-tight.
Features & Options
We can equip your DFB Unloader with any of our conveying systems – pneumatic, mechanical, or Stinger® – to move your material where it needs to go. And if you need precise weighing, we can add load cells and gravimetric metering to the system.
- Up to 3,000 lb. load capacity
- Removable lifting bracket for transporting bulk bags to the “DFB” Unloader
- Single pneumatically operated cylinder mast for lifting and supporting the bag as it is being unloaded
- Heavy structural frame welded per AWS D1.1
- Epoxy painted for durability
- Bulk bag lifting brackets are load tested per OSHA 1926.251 & 1926.251 (a) (4)
- Compact support base to take minimal floor space
- Bag support pan or ring to provided safety when bag is being untied
- Casters on the support base to make the unit totally portable
- Support pan can be supplied with pneumatic or electric vibrator and vibration isolation
- Side bag massagers available for aiding the flow of powder from bulk bags
- Bulk bag access hoppers with connection for central dust collection or with integral dust - collection in the hopper
- Iris valve to secure spout while bag is untied
- Bulk bag spout clamping systems to seal spout to down-stream equipment
- Complete PLC control systems
Specifications
| Height | 8' min |
|---|---|
| Max Weight Capacity | 3,000 lbs |
| Support Pan Options | Pneumatic Vibrator / Electric Vibrator |
| Dust Collection | Vent Connection |
| Access Options | Hopper |
| Bag Clamping | Clamp Ring |
| Bag Lifting | Pneumatic Cylinder |
| Metering Systems | Volumetric / Gravimetric |
| Portability | Casters / Forklift Pockets |
