Stinger® Pump

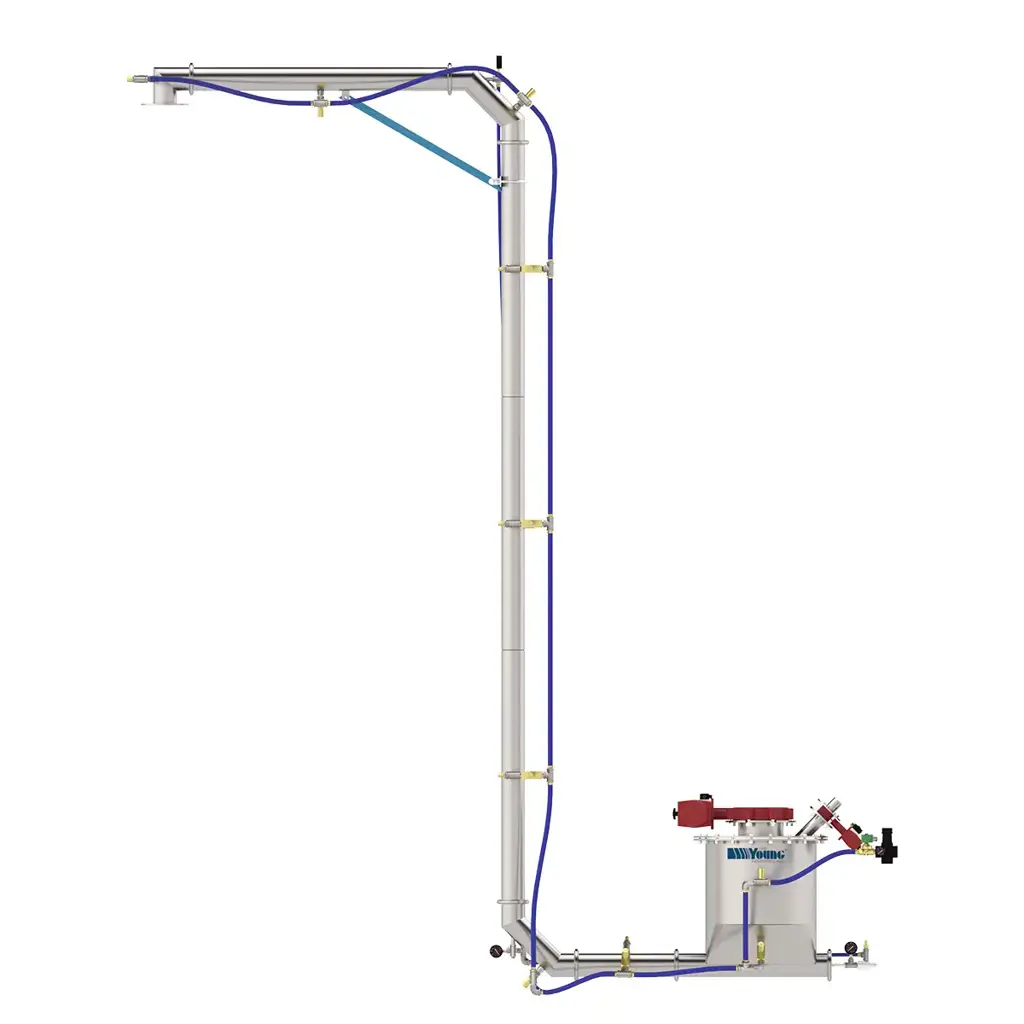

The Stinger® Pump is a compact, versatile solution designed to handle your most challenging powder conveying needs. This fully Transflow®-lined system ensures smooth, reliable flow, even with cohesive materials prone to bridging and rat-holing.

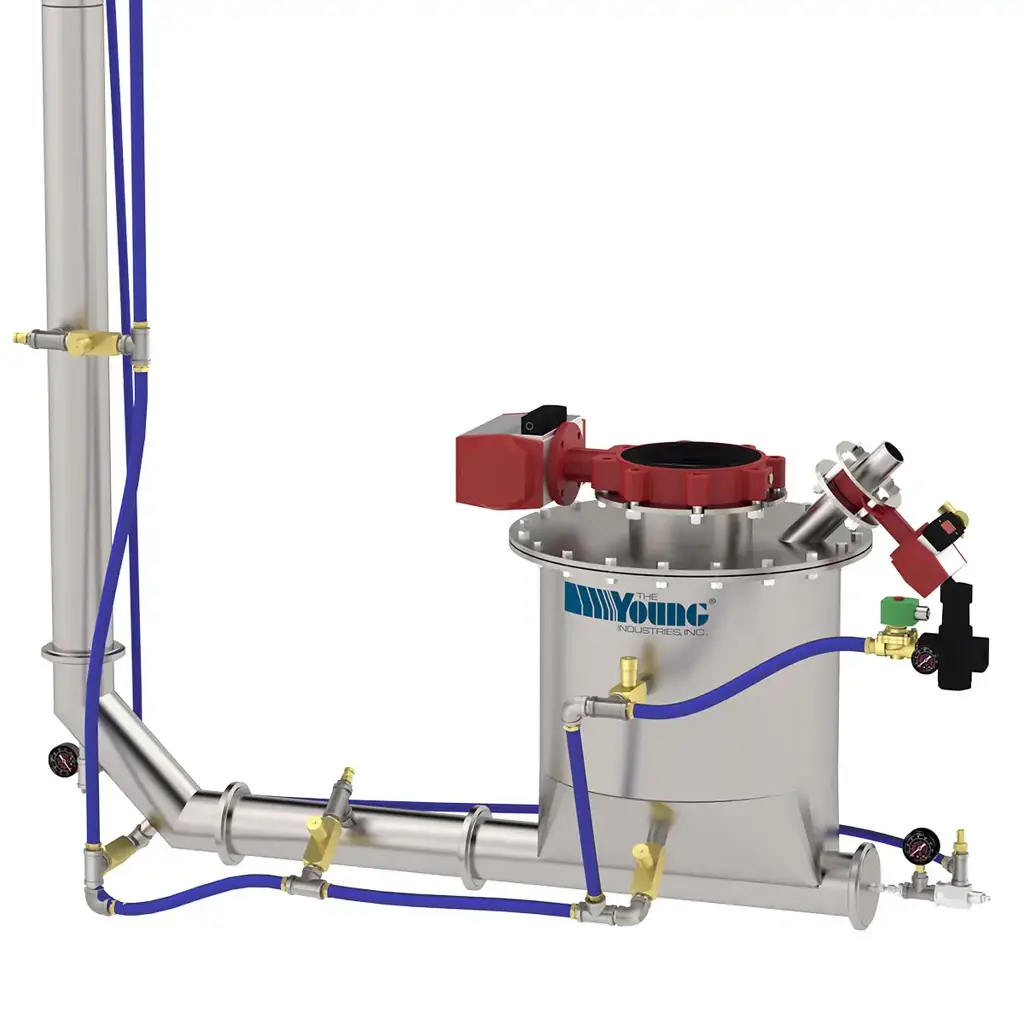

It uses a small, 1.5 ft3 or 3 ft3 pressure pot to convey the materials using low pressure and low volume gas. Its compact design and low air consumption make it an efficient and cost-effective solution.
Features & Options
The Young Industries Stinger® Pump is used when difficult-to-handle materials need to be conveyed both horizontally and vertically. The ideal application would have a vertical distance of up to 30 feet and an overall system length of 50 feet. The Stinger® Pump is the perfect choice for a variety of applications:
-

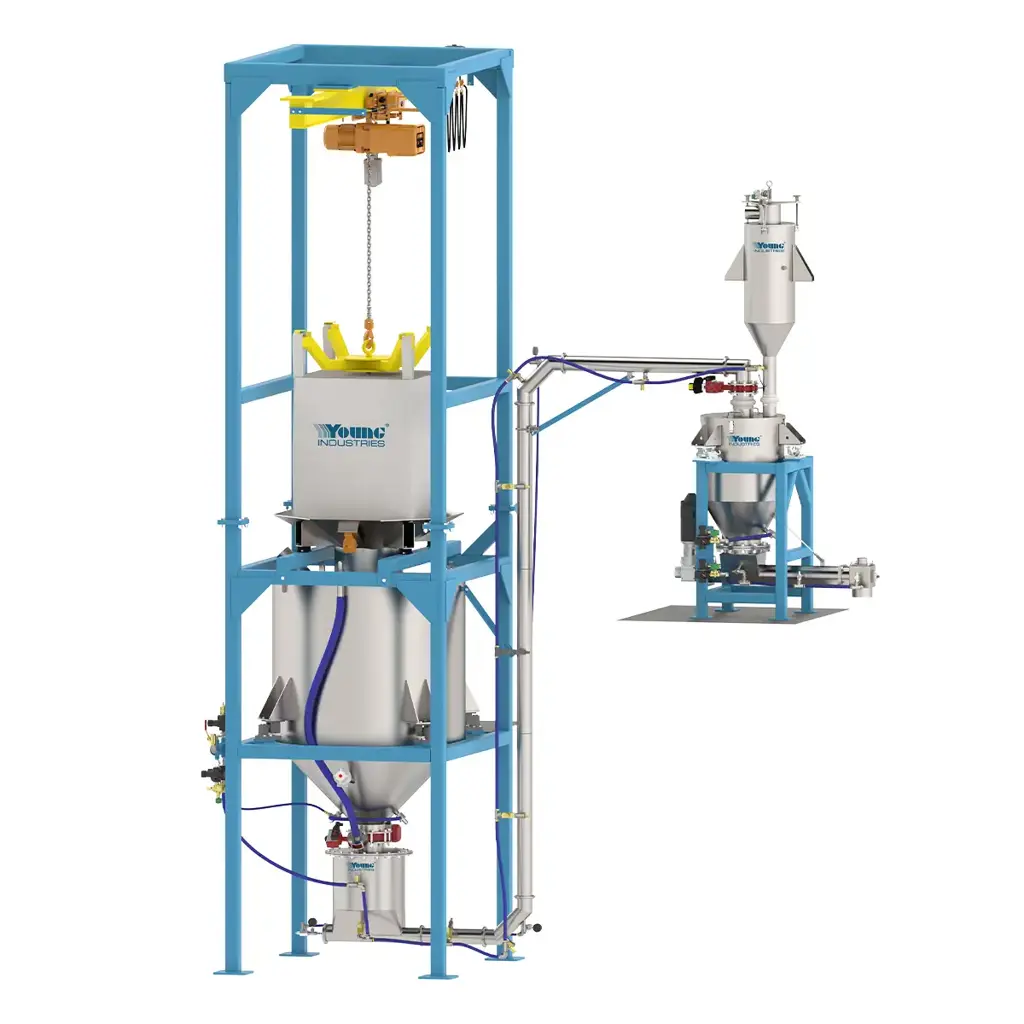

Unloading fine powders from bulk bags to process vessels
-
Transferring powders from paper bag dump stations to process vessels
-
Processes requiring inert gas blanketing of powders
-
Conveying applications where space is limited
-
Conveying applications with multiple discharge destinations
-
Conveying vertically where weighing is required
- Sizes include from 1.5” to 4” diameter
- Materials for construction carbon steel, 304 S/S, and 316 S/S and 316L S/S Transflow®
- Inlet Butterfly Valve at discharge
- Transflow® Tubing
- Transflow® Hopper
- Air or gas piping systems and controls are available
- Manual on/off ball valves, automatic on/off solenoid valves, NEMA 4 or NEMA 7/9
- 24 VDC or 120 VAC
- Custom sizes and materials of construction available
Specifications
| System Type | Stinger Pump |
|---|---|
| Material of Construction | Carbon Steel / 304 Stainless Steel / Other Alloys |
| Line Pressure Required | 3 - 10 PSIG |
| Convey Rate | 150-300 cu. ft. / hr. |
| Housing Capacity | 1.50 or 3.00 cu. ft. |
| Conveying Distance | <50 ft* |
| Convey Line Diameter | 2" - 3" |
| Design Temperature | -20 to 120° F |
| Instrumentation Voltage | 24 VDC / 120 VAC |
| Instrumentation Rating | NEMA 4/7/9 |
*Conveying distance can be a combination of Vertical or Horizontal
Resources
Customization
We offer a variety of customization options for our Stinger® Conveyors and Pumps, allowing us to tailor the perfect solution for your specific material handling challenges. Contact us today to discuss your needs and discover how we can optimize your process.
