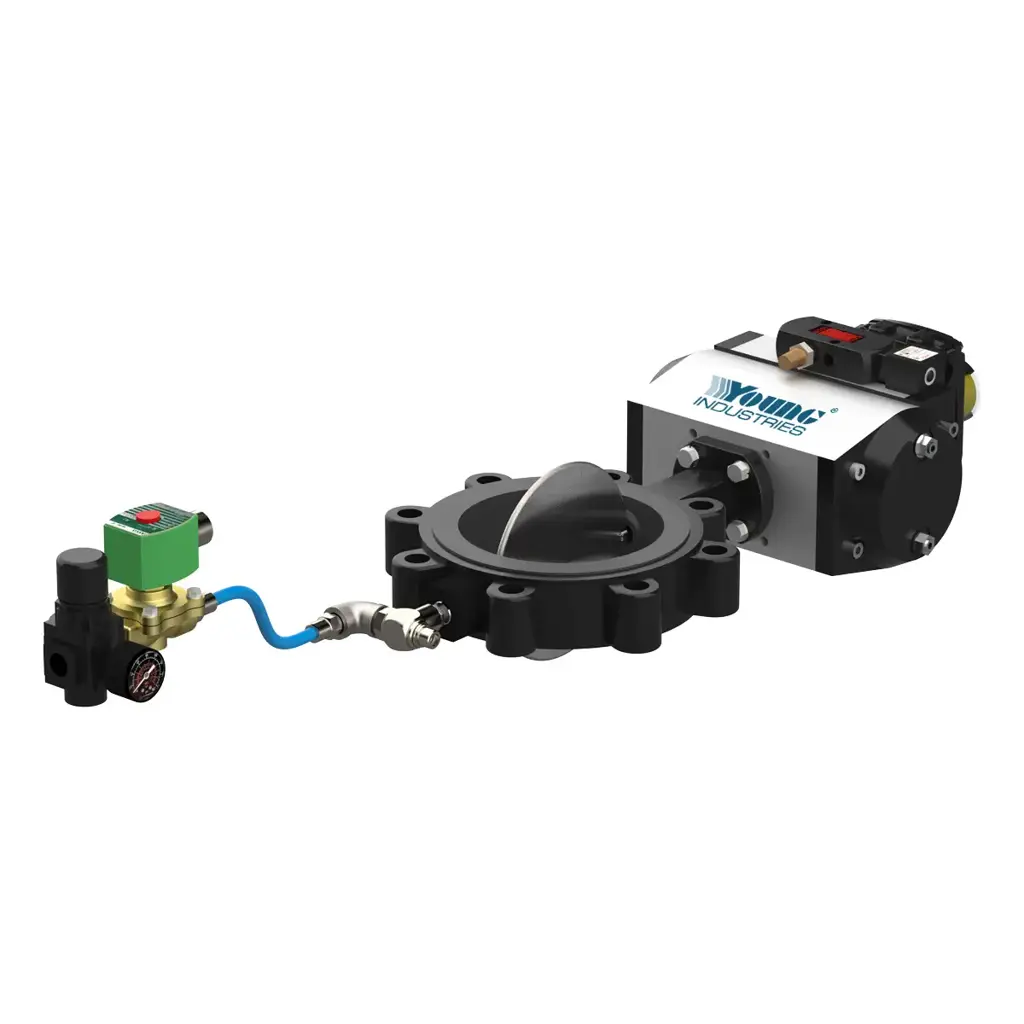

PowderFlow Butterfly Valve
The Young Industries PowderFlow Butterfly Valve is specifically designed for use in dry powder handling applications. The patented valve utilizes a specialized disc lined with TransFlow® fluidization media. The TransFlow® disc fluidizes and conditions even the most cohesive powders.
Features & Options
We've combined durable, robust construction with innovative TransFlow® technology to deliver unmatched flow control and reliability. The lowest point of the hopper, where the valve attaches to its discharge connection, is the most effective area to begin fluidizing and conditioning powders for repeatable flow.
With the PowderFlow Butterfly Valve, the process starts inside the valve itself where TransFlow® fluidization media and the TransFlow® disc fluidizes and conditions the powder so that it flows smoothly and easily.
- Cast iron body
- Lug or wafer style body
- Install between 150 lb. flanges
- ISO 5211 square drive shaft for easy automation
- Graphite reinforced PTFE stem bushings for long service life
- Replaceable cartridge style seat
- Manual hand lever operator with locking arm/plate

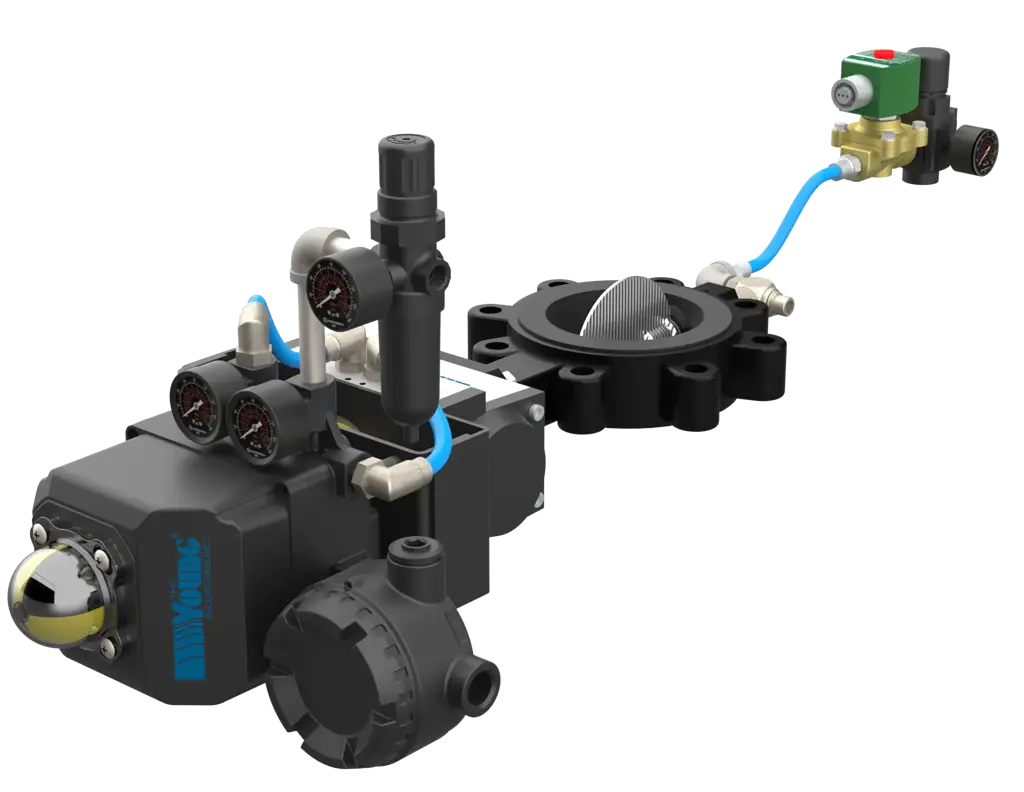

- Rotary pneumatic actuators
- Buna N seat material for temperature up to 175° F
- SilentFlow® Bin Dischargers can be furnished as part of the bin or silo and can be supplied for new or existing storage vessels
- Cone angles of 60°, 45°, 30° (as well as special designs) can be supplied to match your requirements
- 300 Stainless Steel Body
- Many types of seats available
- Materials for operating temperatures up to 300° F
- Pneumatic positioners for controlling position of disc
- Electric actuators
- Control systems as needed for fluidizing and conditioning from the PowderFlow disc

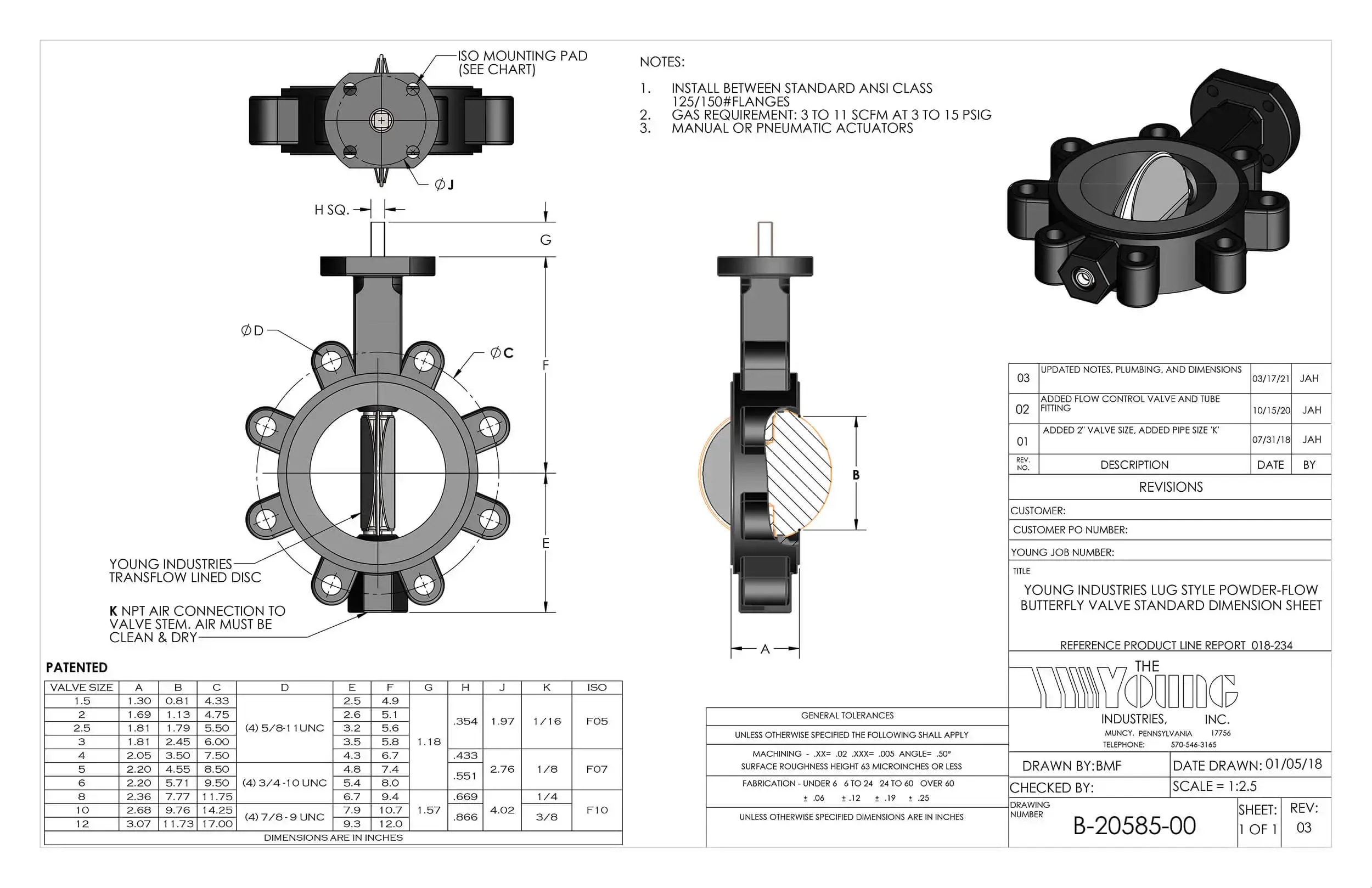

Specifications
| Valve Size | Ref. Full Port Dia. (Disk Removed) |
Est. Width of Disk | Area Blocked by Disk (IN2) | Full Port Area (IN2 - Disk Removed) | Open Area (IN2) With Disk Full Open | % Flow Channel With Valve Full Open |
|---|---|---|---|---|---|---|
| 2 | 2.04 | 0.90 | 1.84 | 3.27 | 1.43 | 43.8% |
| 3 | 3.06 | 1.00 | 3.06 | 7.35 | 4.29 | 58.4% |
| 4 | 4.03 | 1.25 | 5.03 | 12.73 | 7.70 | 60.5% |
| 5 | 5.05 | 1.31 | 6.62 | 20.01 | 13.38 | 66.9% |
| 6 | 6.07 | 1.50 | 9.10 | 28.89 | 19.79 | 68.5% |
| 8 | 7.98 | 1.75 | 13.97 | 50.01 | 36.05 | 72.1% |
| 10 | 10.02 | 2.25 | 22.55 | 78.85 | 56.31 | 71.4% |
| 12 | 12.00 | 2.32 | 27.81 | 113.10 | 85.29 | 75.4% |
