INTRO: Rotary Valves - Model ES - End Seal
End Seal
Model ES

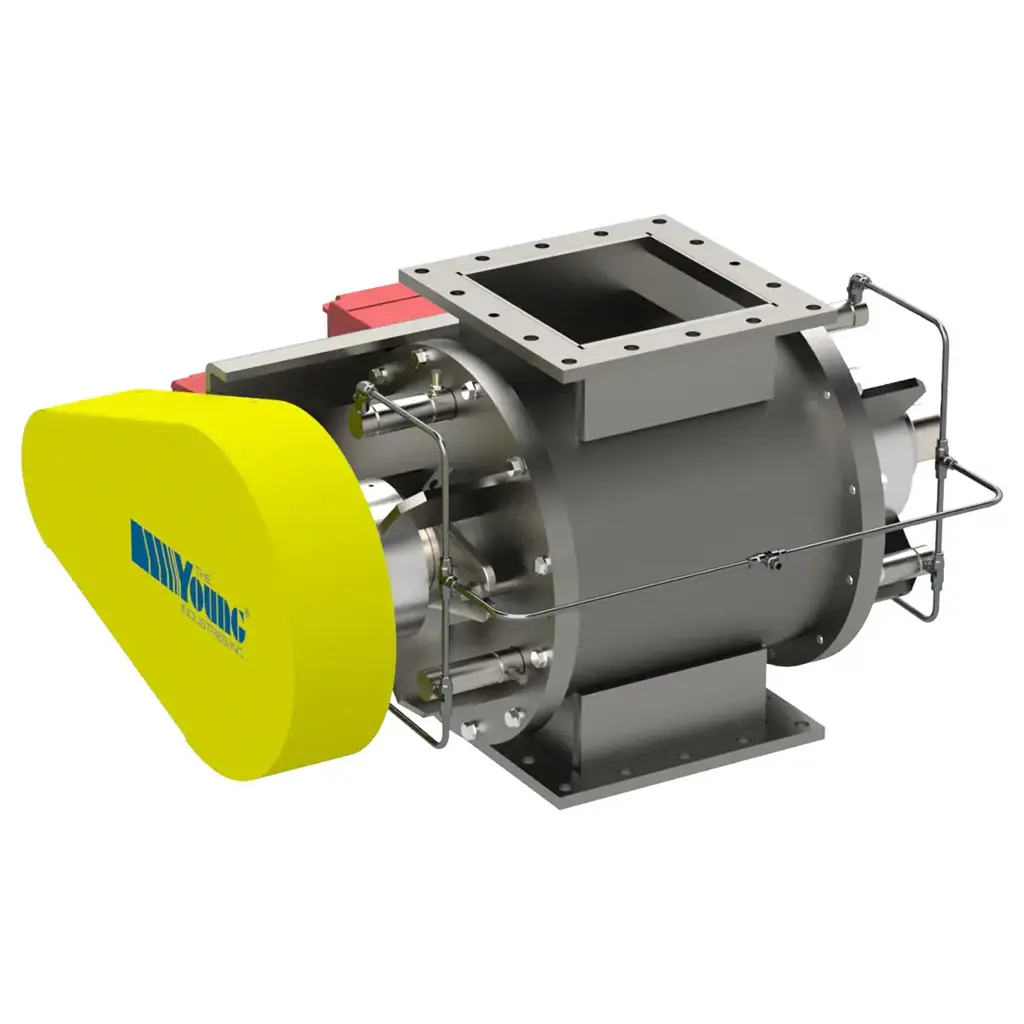

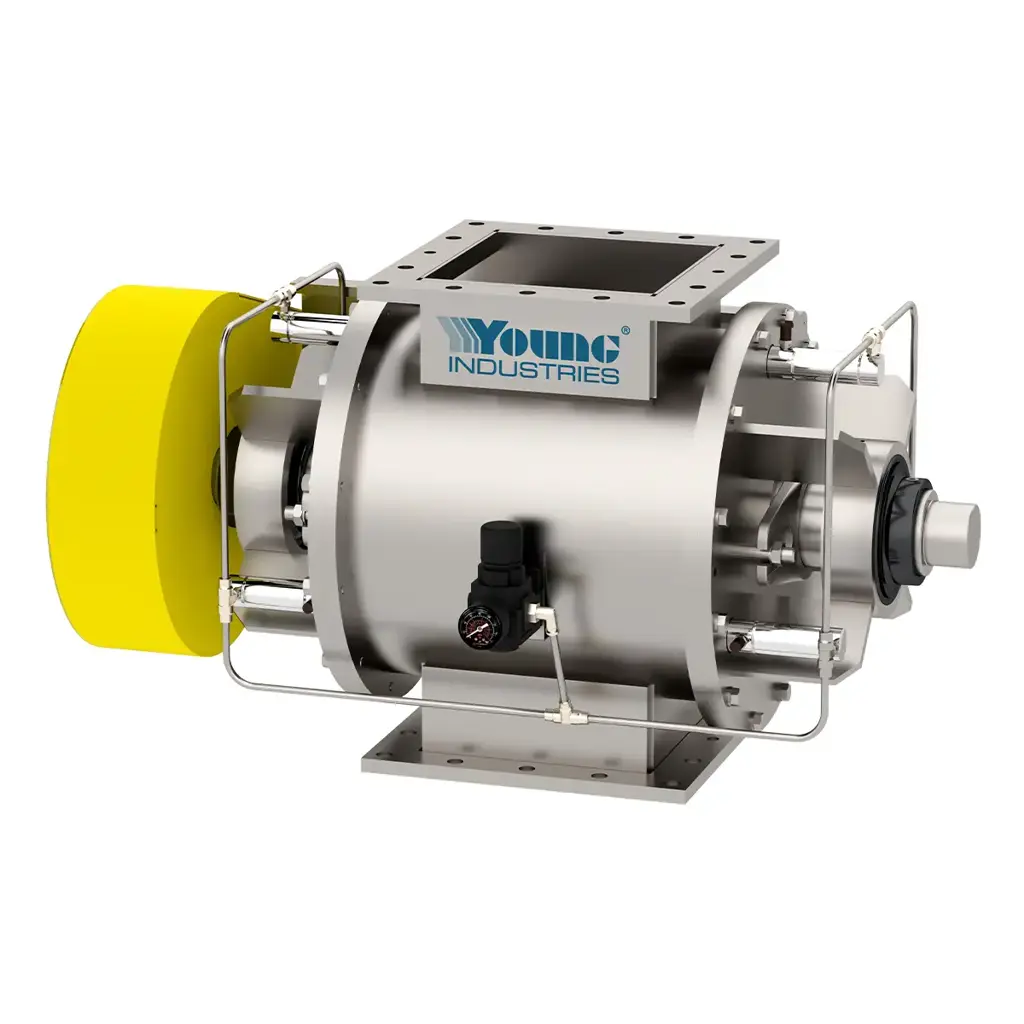

The Young Industries Model ES (End Seal) Rotary Valve is your solution for dramatically reducing differential pressure leakage. Available in our popular HC (High Capacity), LH (Low Headroom), or SE (Side Entry) models, the ES Valve cuts leakage by approximately 50%, ensuring optimal process efficiency and control.

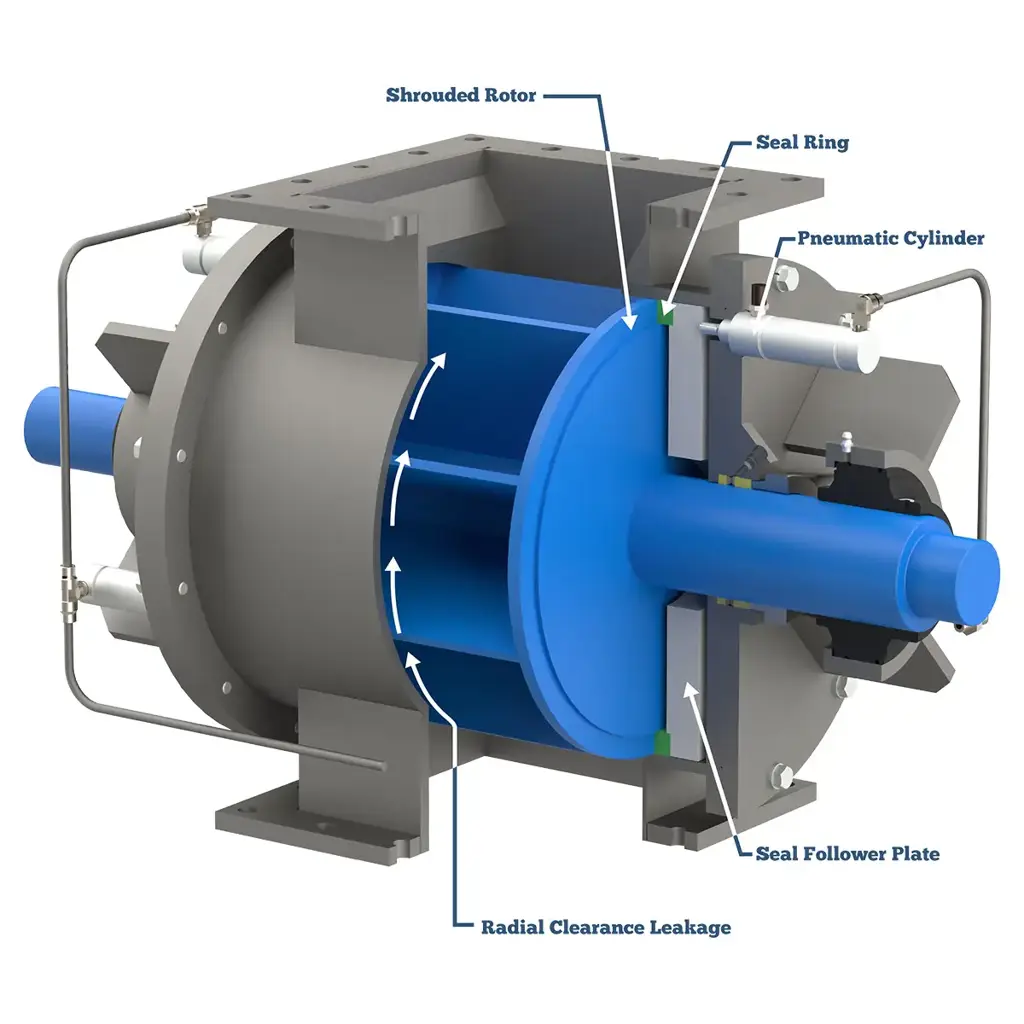

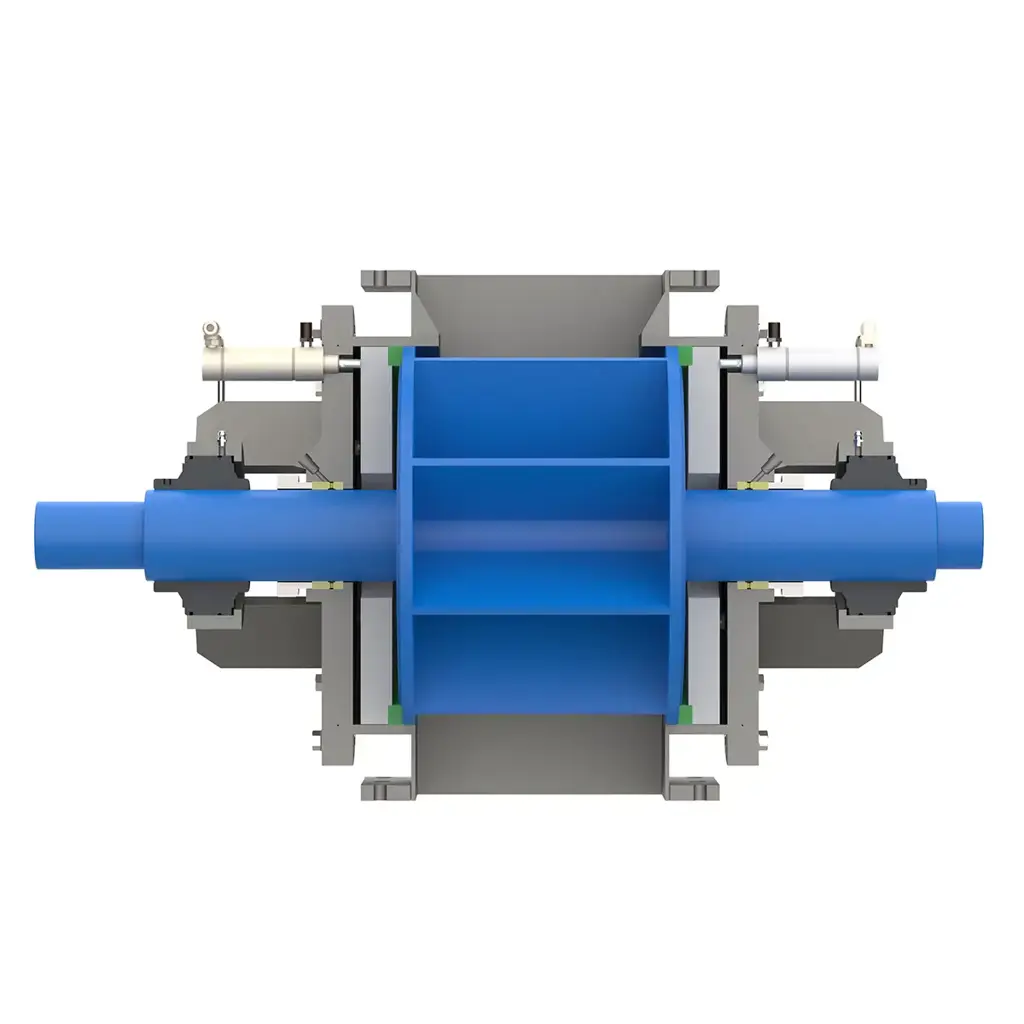

How does it work? The ES Valve utilizes peripheral rings that seal against the rotor shroud, eliminating axial leakage. These rings are continuously adjusted with pneumatic cylinders to maintain the perfect sealing force.
Features & Options
The Model ES Rotary Valve isn't just about reducing leakage—it's about optimizing your entire process. We've packed it with features designed to handle even the most demanding applications, from extreme temperatures to abrasive materials.
The Model ES Rotary Valve virtually eliminates air leakage between the rotor edges and the end plates. This translates to improved process control, reduced energy waste, and increased productivity.
Whether you're handling low-bulk-density materials or products with challenging flow characteristics, the ES Valve provides reliable feeding and superior performance.
- Peripheral sealing rings between the rotor shroud and the end plate
- 15 PSIG Housing and differential pressure or vacuum
- Minimum four blade sealing with two (2) blade sealing on each side
- Fabricated or cast designs
- Materials of construction: Cast or fabricated carbon steel or cast or fabricated stainless steel
- Raw materials are traceable to standard specifications with ASTM the most used specification
- Round or square inlet flange
- Round or square discharge flange
- Up to 250°F operation temperature, with designs offered to withstand up to 1,000°F
- Outboard-mounted precision ball bearings
- Packing gland rotor shaft seal consisting square braided Kevlar impregnated with PTFE packing, 4 rings per side and held in place by an aluminum packing follower
- Eight (8) bladed rotor with twelve (12) bladed rotor for rotary valves over 12″ size to provide low operating air or gas leakage.
- Rotor assembled concentrically to the housing
- Rotor shafts secured to eliminate shifting in the housing
- Only furnished with shroud rotors available with four (4) different types of rotors. The types are “AS”- Standard, “BS & CS”- partially filled and “DS” – adjustable tips
- Grounding and bonding connection to NFPA specifications
- Parallel shaft gearmotor, side-mounted, 3-phase, 60 Hertz, 230-460 volts, TEFC and roller chain drive and safety to OSHA requirements
- Painted blue epoxy
- Completely assembled and tested
- High temperature design to 1,000°F
- Special sizes and double length styles available
- Drive and accessories are usually supplied consisting of a parallel shaft gear motor, sprockets, drive chain and safety guard. TEFC or Explosion proof motors, direct connected and other special drive available
- Special materials of construction including: 316 Stainless steel, Hastelloy, Titanium
- Interior coatings (to provide abrasive resistance and material release) include: chrome plating, nickel plating, tungsten carbide, Stellite, Teflon
- Interior polishes and cleanup
- Special packing materials, e.g. graphite, food grade PTFE
- Air purge packing glands
- Lip seal packing
- Self adjusting packing follower
- Mechanical rotor shaft seals
- Shaft seal area polishes
- Inlet material deflector
- Venting thimble
- Housing vent
- End-plate purges
- Beveled rotor tips and edges
- Rigid or flexible tips
- Painted or coated per customers specification
Specifications
| Size | Standard Speed (RPM) | Standard HP | Materials of Construction | Standard Design Temp. | Standard Design Pressure |
|---|---|---|---|---|---|
| 4 | 38 | 0.75 | Carbon Steel* Stainless Steel* Aluminum* Hastelloy^ Titanium^ |
250°F | 15 PSIG |
| 5 | |||||
| 6 | 32 | ||||
| 8 | 1 | ||||
| 10 | |||||
| 12 | |||||
| 14 | 1.5 | ||||
| 16 | 30 | 1.5 | |||
| 18 | 28 | 1.5 |
*Cast or Fabricated
^Fabricated Only
Resources
Customization
We know that leakage control is critical for many processes. That's why our End Seal Rotary Valves offer a range of customization options to meet your specific needs. From high-pressure and high-temperature designs to specialized materials and coatings, we'll configure the perfect ES Valve for your application.
Our team will collaborate with you to understand your process requirements and recommend the ideal combination of features and options.
