Dense Phase Pneumatic Conveying
Dense phase pneumatic conveying is the preferred choice for handling abrasive, heavy, or fragile materials. Operating at low velocities, these systems minimize wear and product attrition while ensuring consistent, reliable transport. Ideal for powders, granules, and other bulk solids, dense phase systems deliver high efficiency and cost-effective performance for demanding applications.
Features & Options
Our dense phase pneumatic conveying systems are built to meet the demands of even the most challenging material handling applications. From robust construction to advanced control features, every system is tailored to provide gentle, reliable transport while minimizing wear and energy consumption.
With a wide range of features and customizable options, we deliver solutions that protect your materials and maximize operational efficiency.
Features
- Available for handling abrasive, heavy, or fragile materials
- Gentle material transport to minimize product attrition and wear
- Efficient use of air or gas to reduce energy consumption
- Durable materials of construction, including carbon steel and 304/316 stainless steel
- ASME code-compliant transporters designed for up to 150 PSIG
- Patented M/P Valve for precise control of air volume and velocity
- Pneumatically actuated valves for reliable sealing and operation
- PLC controllers with user-friendly interfaces for streamlined operation
Options
- Options for batch or continuous operation to suit process requirements
- Custom coatings and finishes for corrosive or abrasive environments
- Customizable control panels to manage additional equipment
- Options for network integration and remote monitoring
- Scalable configurations for future capacity expansion
Specifications

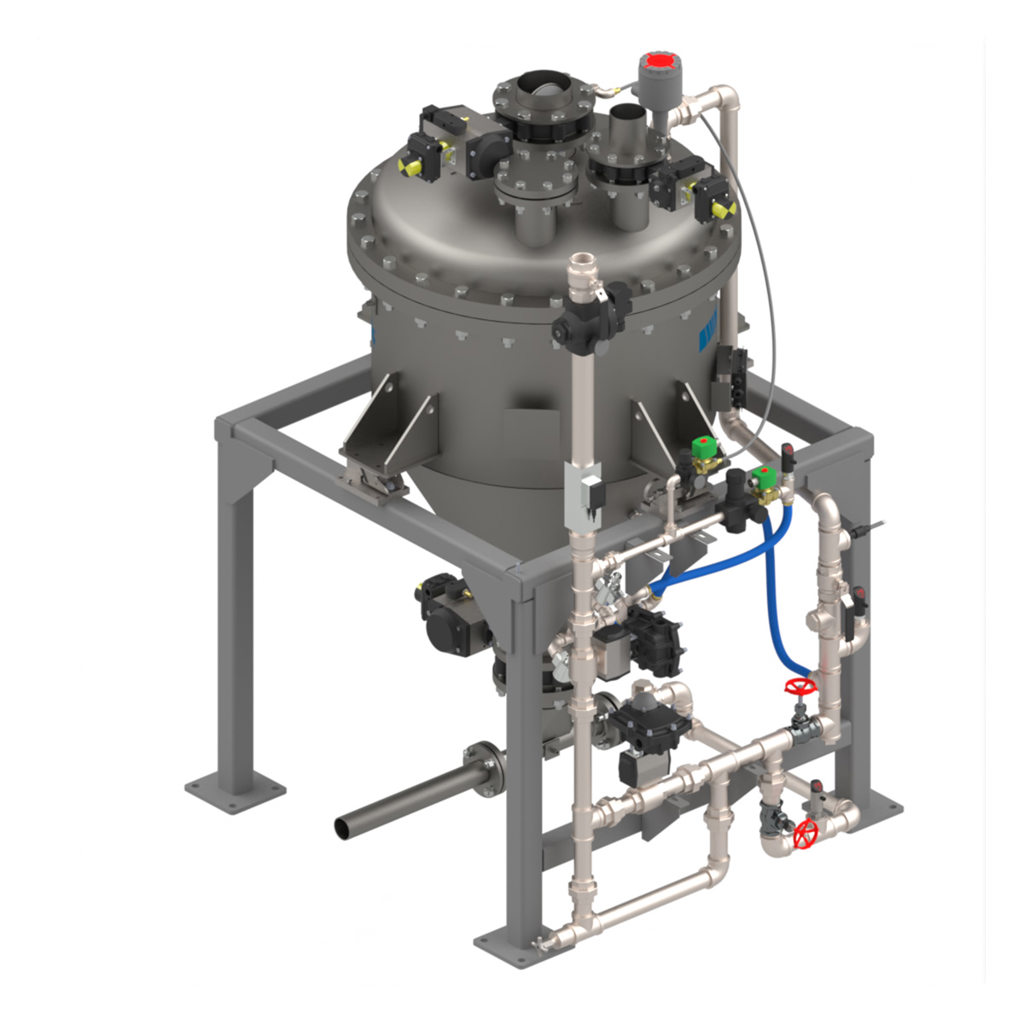

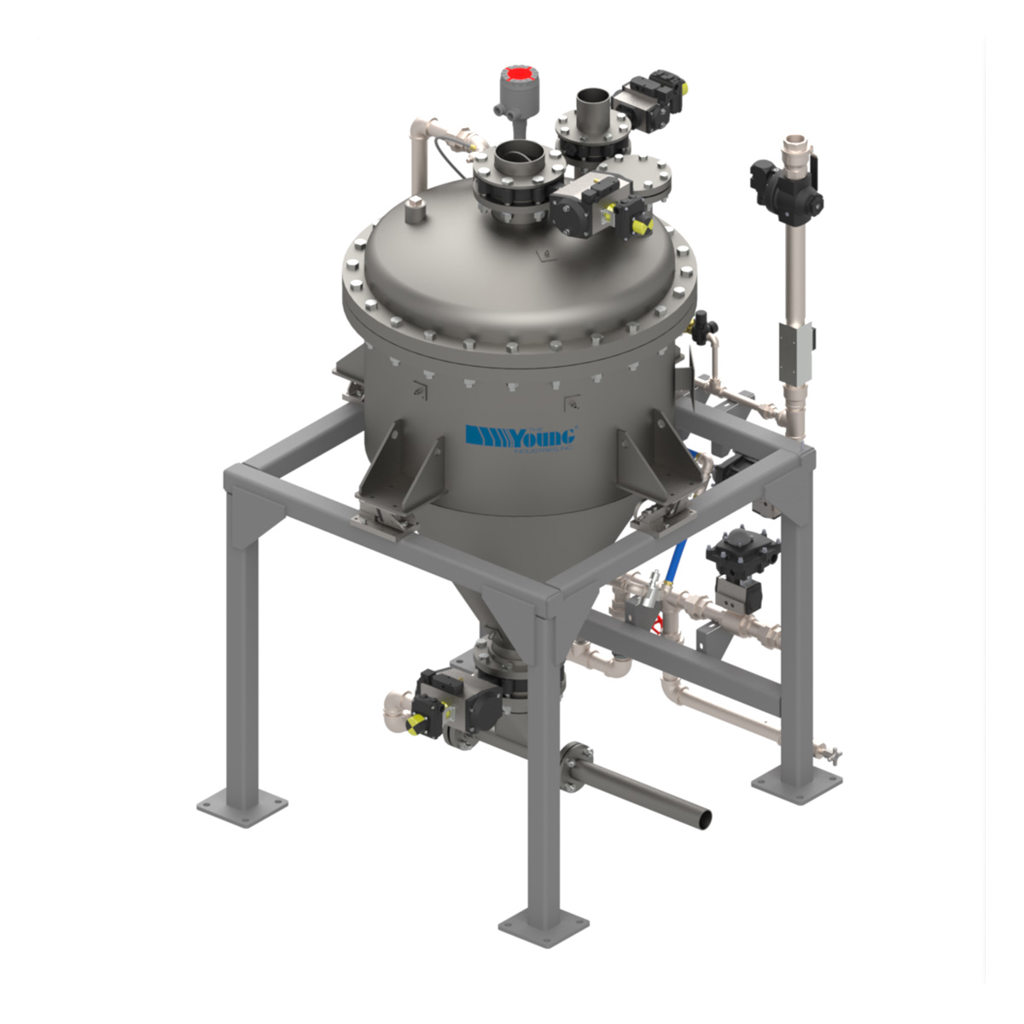

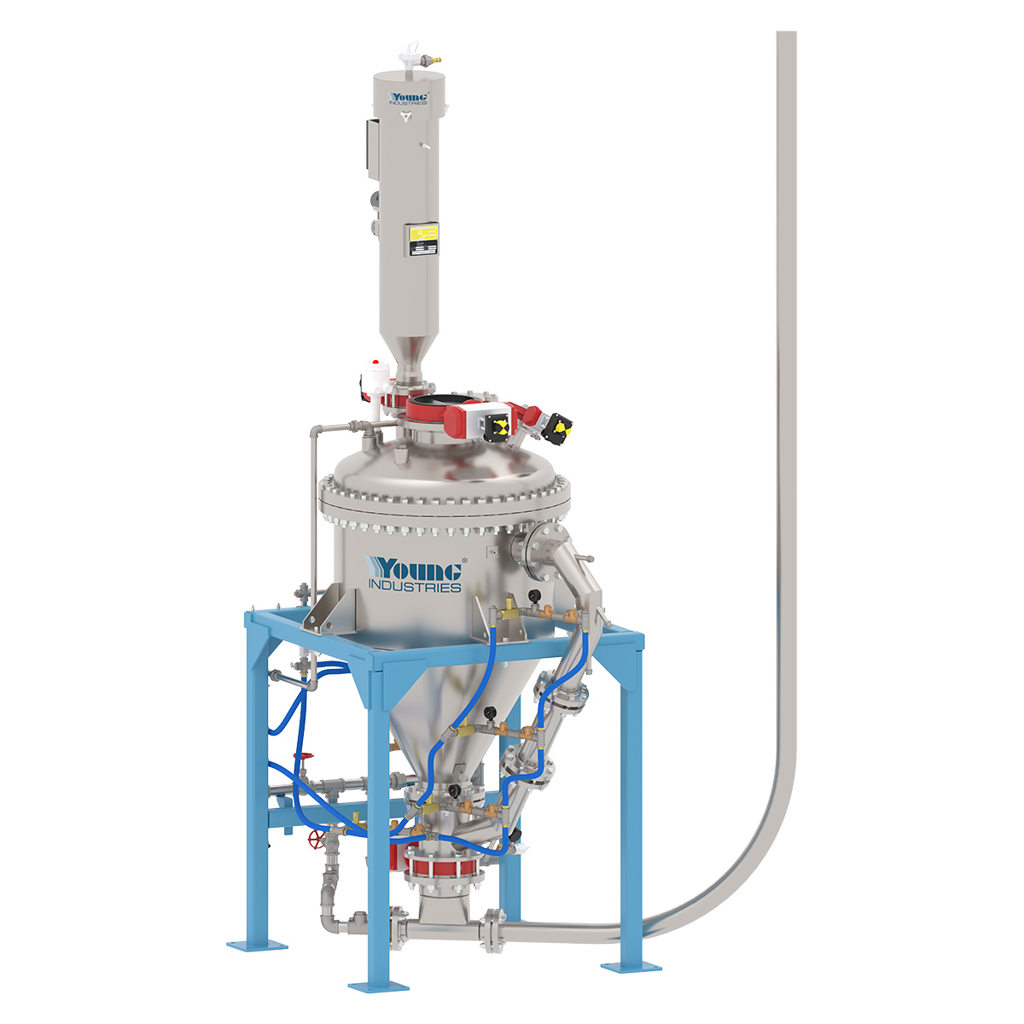

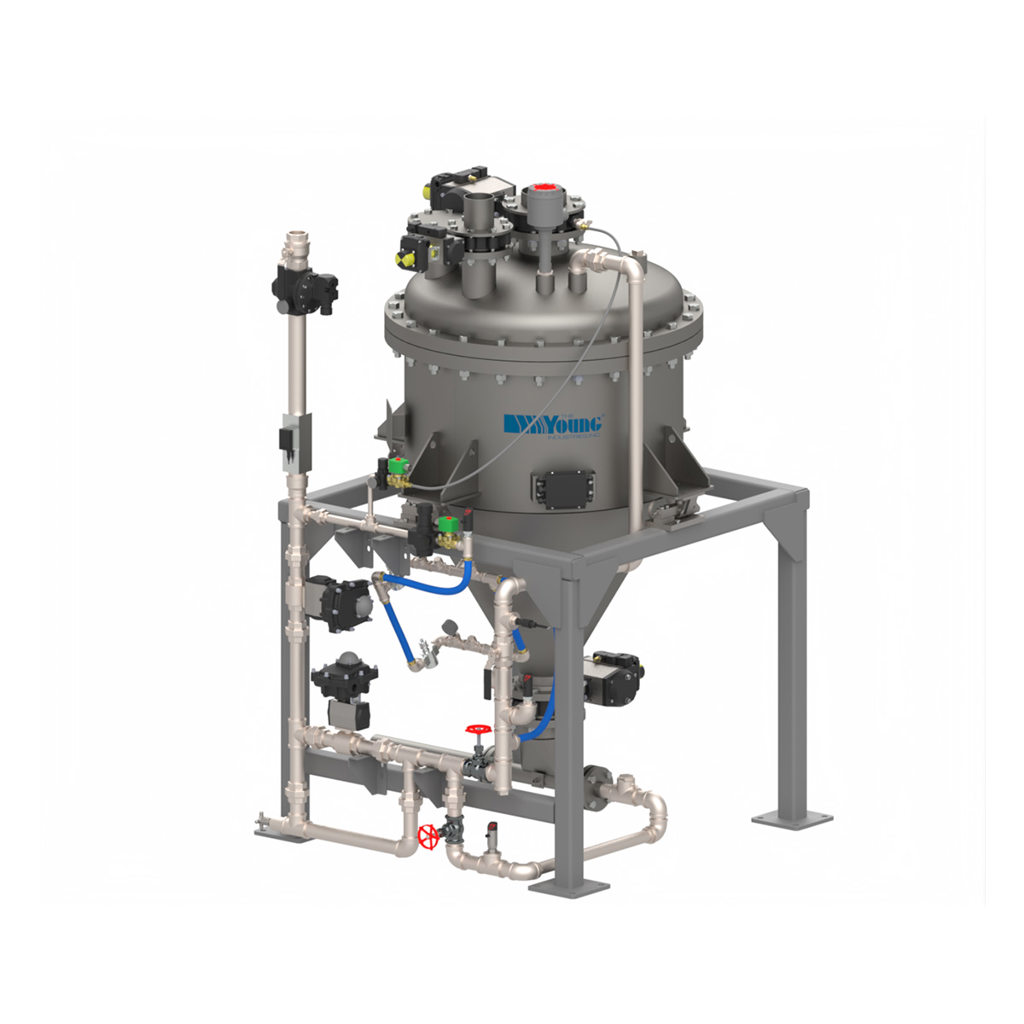

| System Type | Dense Phase Transporter |
|---|---|
| Material of Construction | Carbon Steel / 304 Stainless Steel / Other Alloys |
| CFM Required | 100 - 1,000 CFM |
| Bulk Density | Up to 100 lb/cu. ft* |
| Capacity | Up to 150,000 lbs/hr |
| Conveying Distance | Up to 1,000 ft* |
| Design Pressure | 150 PSIG |
| Design Temperature | -20 to 120° F |
| ASME Stamp | U |
| Instrumentation Voltage | 24 VDC / 120 VAC |
| Instrumentation Rating | NEMA 4/7/9 |
*Consult Young Industries Applications for values exceeding standard.
Resources
Customization
We specialize in designing dense phase pneumatic conveying systems that address your material handling challenges. Whether you’re transporting fragile materials or managing abrasive substances, our systems are engineered to deliver efficiency, reliability, and lasting value.
